Power Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "ON" & Engine "OFF".

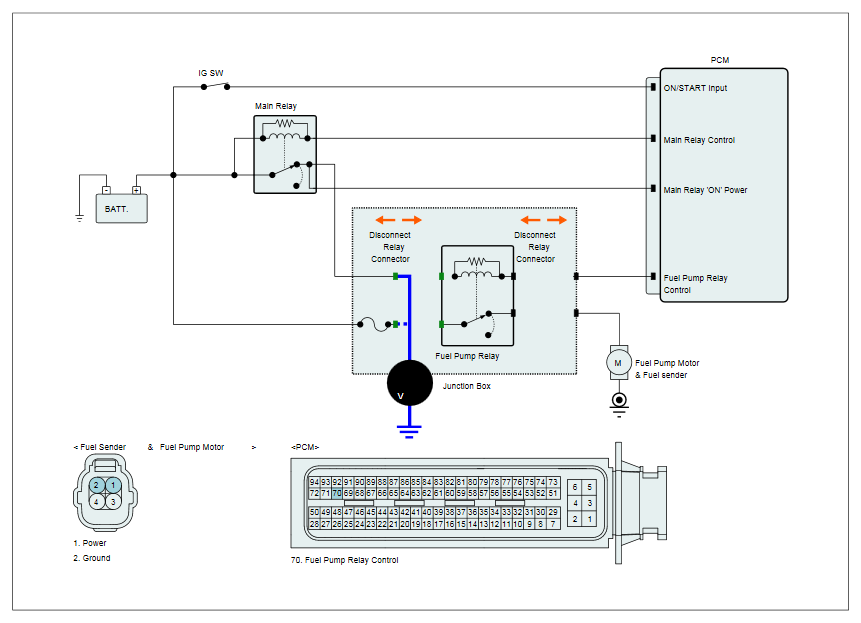

- Measure voltage between power supply terminals of fuel pump relay harness and chassis ground.
Specification: Approx. B+
- Is voltage within the specification?
YES
- Go to "CONTROL CIRCUIT INSPECTION " procedure.
NO
- Check for an open or short to ground in the power supply circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
