Control Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

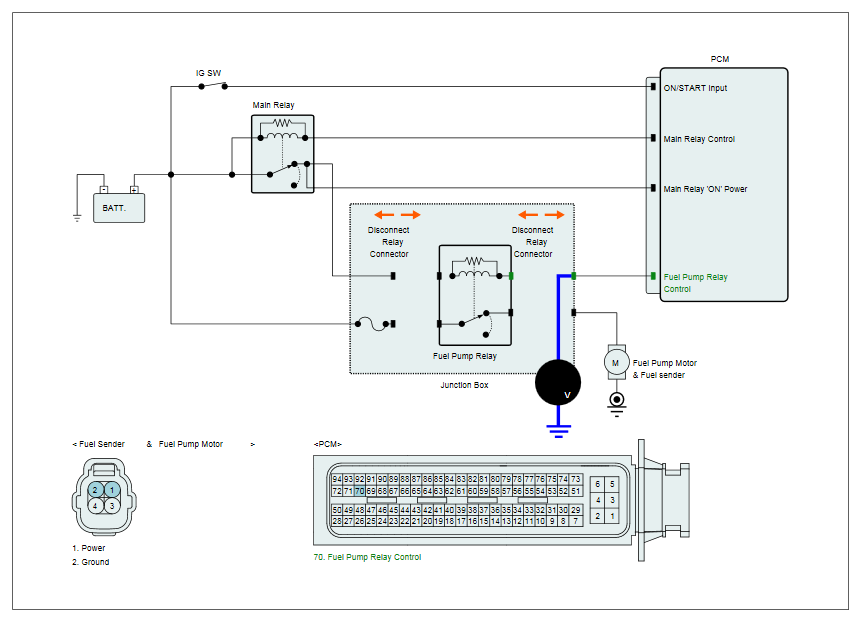

- Measure voltage between control terminal of Fuel Pump Relay harness connector and chassis ground.
Specification: 4~5V
- Is voltage within the specification?
YES
- Go to next step as below.
NO
- Check for open or short in control circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
