Component Inspection: Notes

Height Sensor Linkage Inspection
1. Lift up the vehicle and visually check for the condition of the linkage.

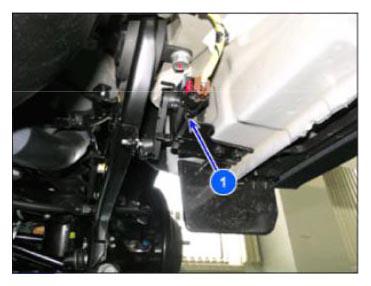

  Fig 1: AHLDM & Height Sensor Location
  Courtesy of HYUNDAI MOTOR AMERICA

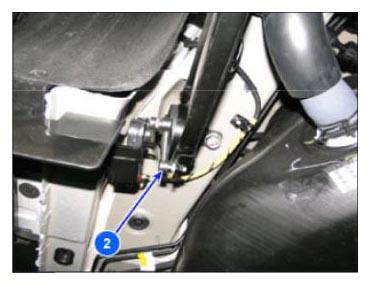

  Fig 2: Linkage Location
  Courtesy of HYUNDAI MOTOR AMERICA
2. Is the linkage of the height sensor released?
  YES
  - Check for poor assembly.
  - Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to: "AHLDM " procedure.
