Repair procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the main crash pad assembly.
(Refer to "MAIN CRASH PAD ASSEMBLY ")
Disconnect the steering column connectors.
(Refer to REPLACEMENT
Down the steering column after loosening the mounting bolts.
(Refer to REPLACEMENT
Disconnect the blower unit connectors.
Disconnect the mounting clip (A).

Fig 1: Identifying Blower Unit Connectors Mounting Clip
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).
Loosen the mounting bolts and nuts, then gently move the shift lever bracket (B) away from the shift lever.

Fig 2: Identifying Shift Lever Bracket And Connector
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting nuts, then remove the shift lever panel (A).
Tightening torque:

9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

Fig 3: Identifying Shift Lever Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).
After loosening the mounting nuts, then remove the LVDS (B).
Tightening torque:

9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

Fig 4: Identifying LVDS And Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the passenger compartment junction box connectors (A).

Fig 5: Identifying Passenger Compartment Junction Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the multi box connectors (A).
[Driver's]

Fig 6: Identifying Multi Box Connectors - Driver's
Courtesy of HYUNDAI MOTOR AMERICA

[Passenger's]

Fig 7: Identifying Multi Box Connectors - Passenger's
Courtesy of HYUNDAI MOTOR AMERICA

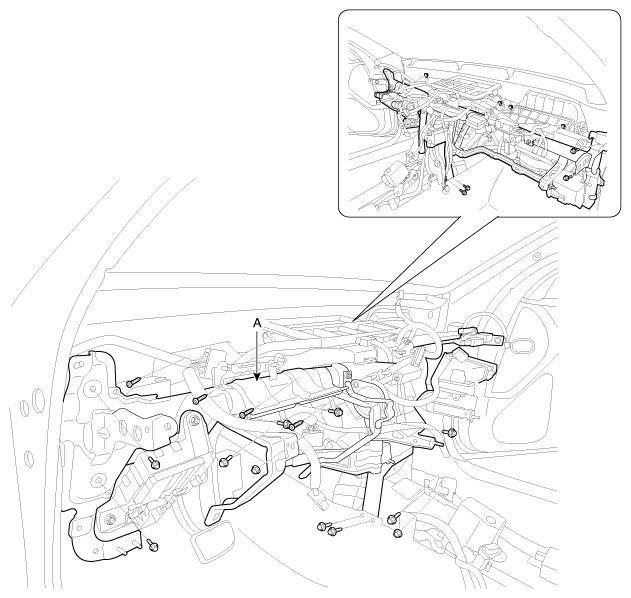

After loosening the mounting bolts and nuts, then remove the cowl cross bar assembly (A).

Fig 8: Identifying Cowl Cross Bar Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
