Rear Door Replacement

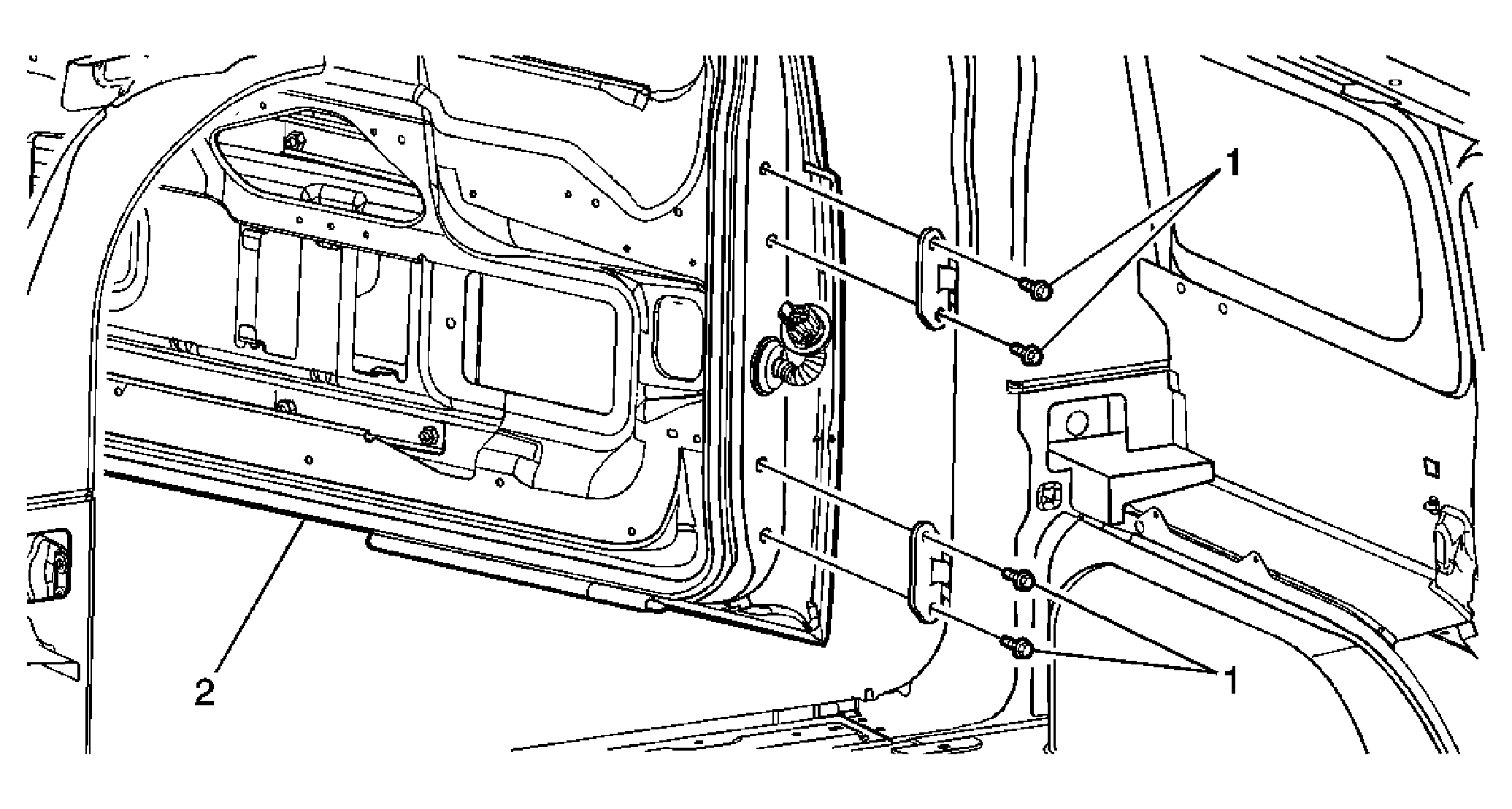

Fig 1: Rear Door Replacement
GM1554994Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the rear door trim panel. Refer to Rear Door Trim Panel Replacement .
  2. Remove the rear wiper motor. Refer to Rear Window Wiper Motor Replacement .
  3. Remove the rear door strut. Refer to Rear Door Strut Replacement .
1 Hinge Bolt (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  50 N.m (37 lb ft)
2 Rear Door Assembly
Tip:
  • Disconnect the washer hose.
  • Disconnect the electrical connector.
