Ambient Air Temperature Sensor Replacement

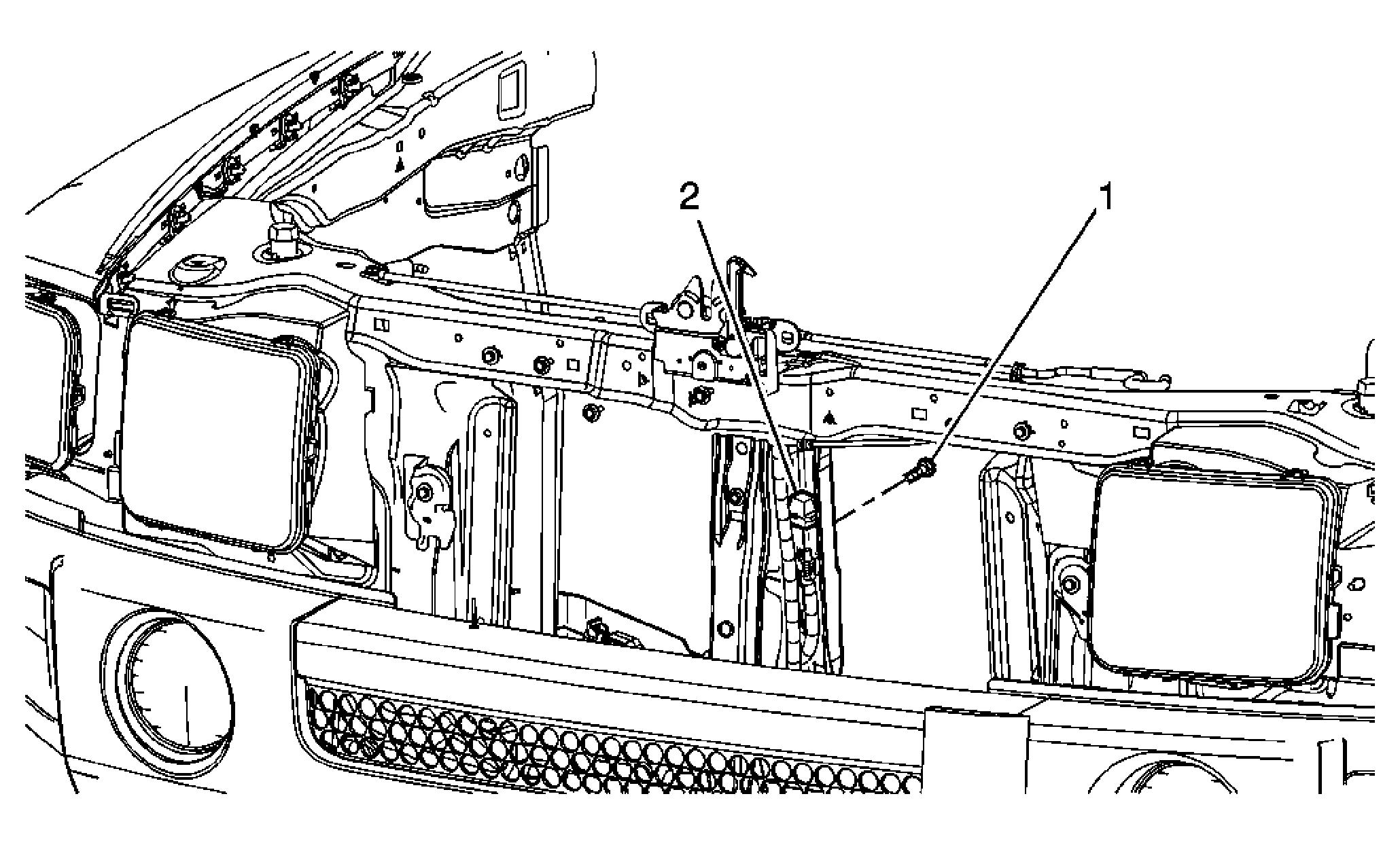

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front grille. Refer to Grille Replacement . |
|
| 1 | Sensor Ambient Air Temperature Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Ambient Air Temperature Sensor |
