Sunroof Motor/Actuator Replacement

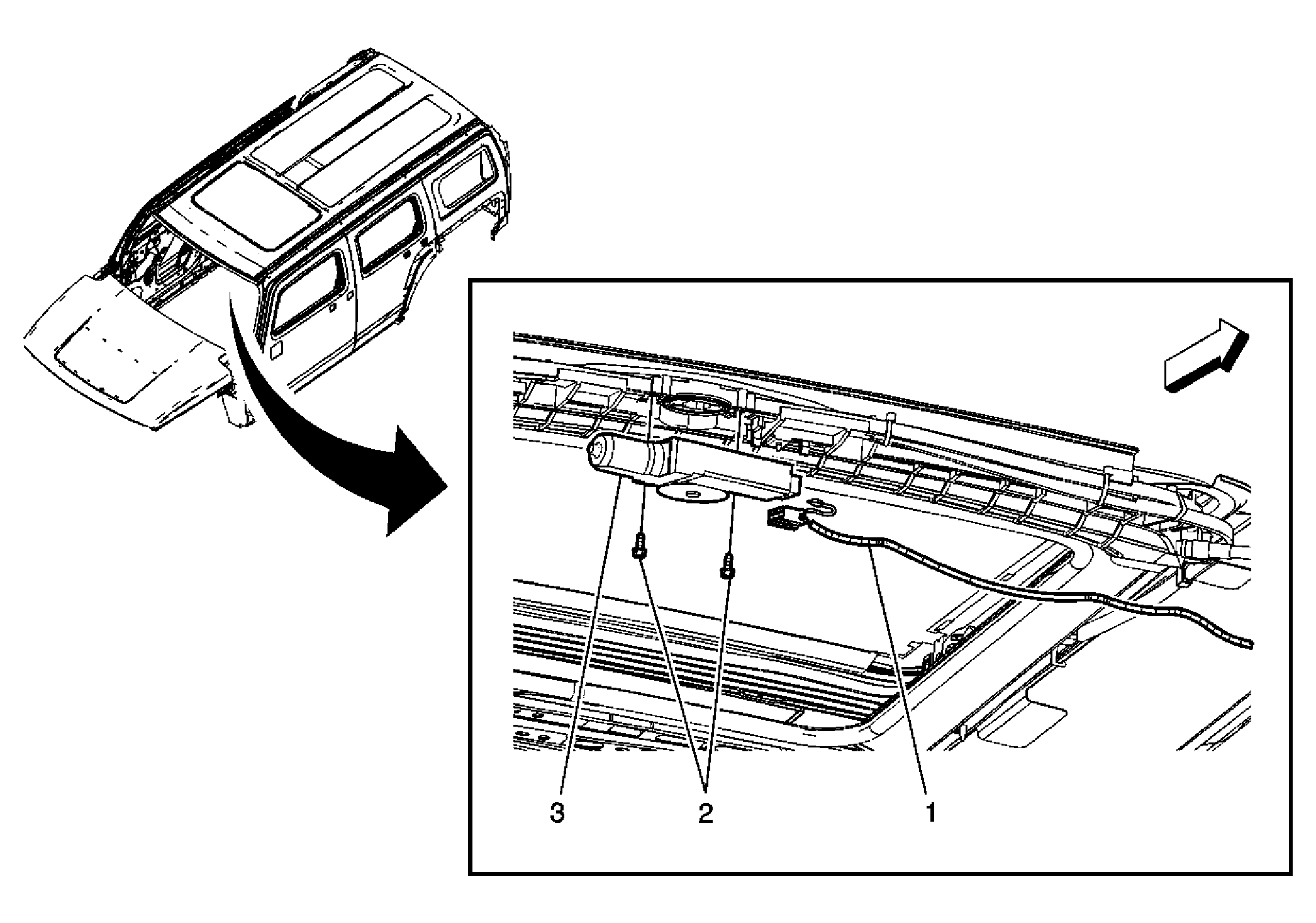

Fig 1: Sunroof Motor/Actuator Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (H3) or Headlining Trim Panel Replacement (H3T) .
1	Sunroof Motor/Actuator Plug
2	Sunroof Motor/Actuator Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
3	Sunroof Motor/Actuator Procedure Pull downward to disengage the motor/actuator from the sunroof module. After installing the motor actuator, refer to Sunroof Motor/Actuator Initialization/Teach Process .
