Rear End Trim Finish Panel Replacement (H3T)

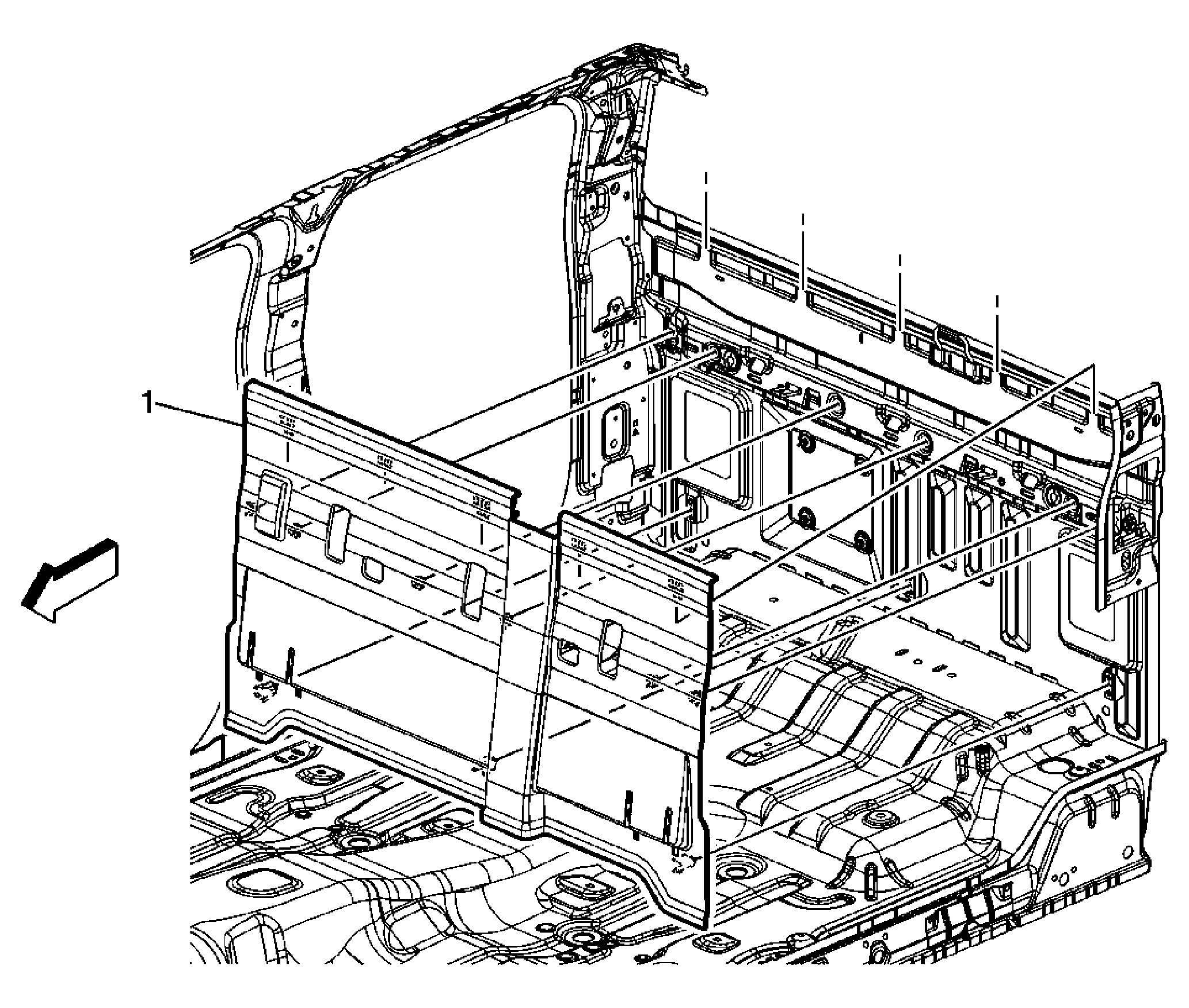

Fig 1: Rear End Trim Finish Panel Replacement (H3T)

GM2142001

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the rear seat. Refer to Rear Seat Replacement (with H3T) .

1

Rear End Trim Finish Panel Assembly

Procedure

Grasp the lower edge of the body rear trim panel and pull to release the fasteners from the sheet metal.
Raise the panel to unhook it from the sheet metal along the lower edge of the rear window.
Remove any fasteners that may have pulled away from the panel and reinstall them to the back of the panel.
