Rear Seat Replacement (with H3T)

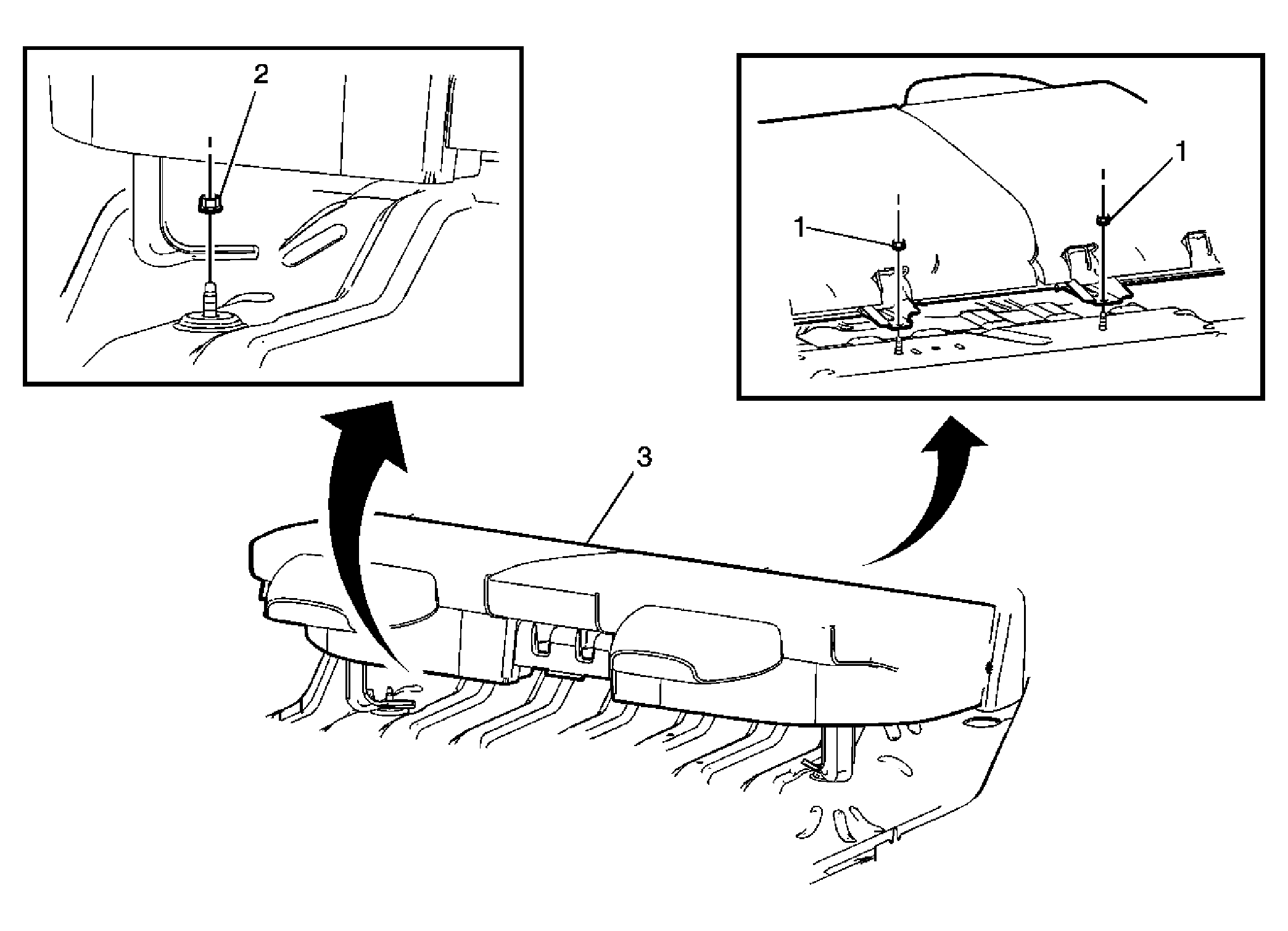

Fig 1: Rear Seat Replacement (With H3T)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lay both seats down before moving.
1	Rear Seat Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 53 N.m (39 lb ft)
2	Rear Seat Nut (Qty: 2) Tighten: 53 N.m (39 lb ft)
3	Rear Seat WARNING: The rear bench seat weighs over 32 kg (71 lb) and is too long for one person to lift. To avoid personal injury use two people to lift this seat. Procedure Disconnect any electrical connectors. Transfer components as necessary.
