Body Side Rear Lower Trim Panel Replacement (H3T)

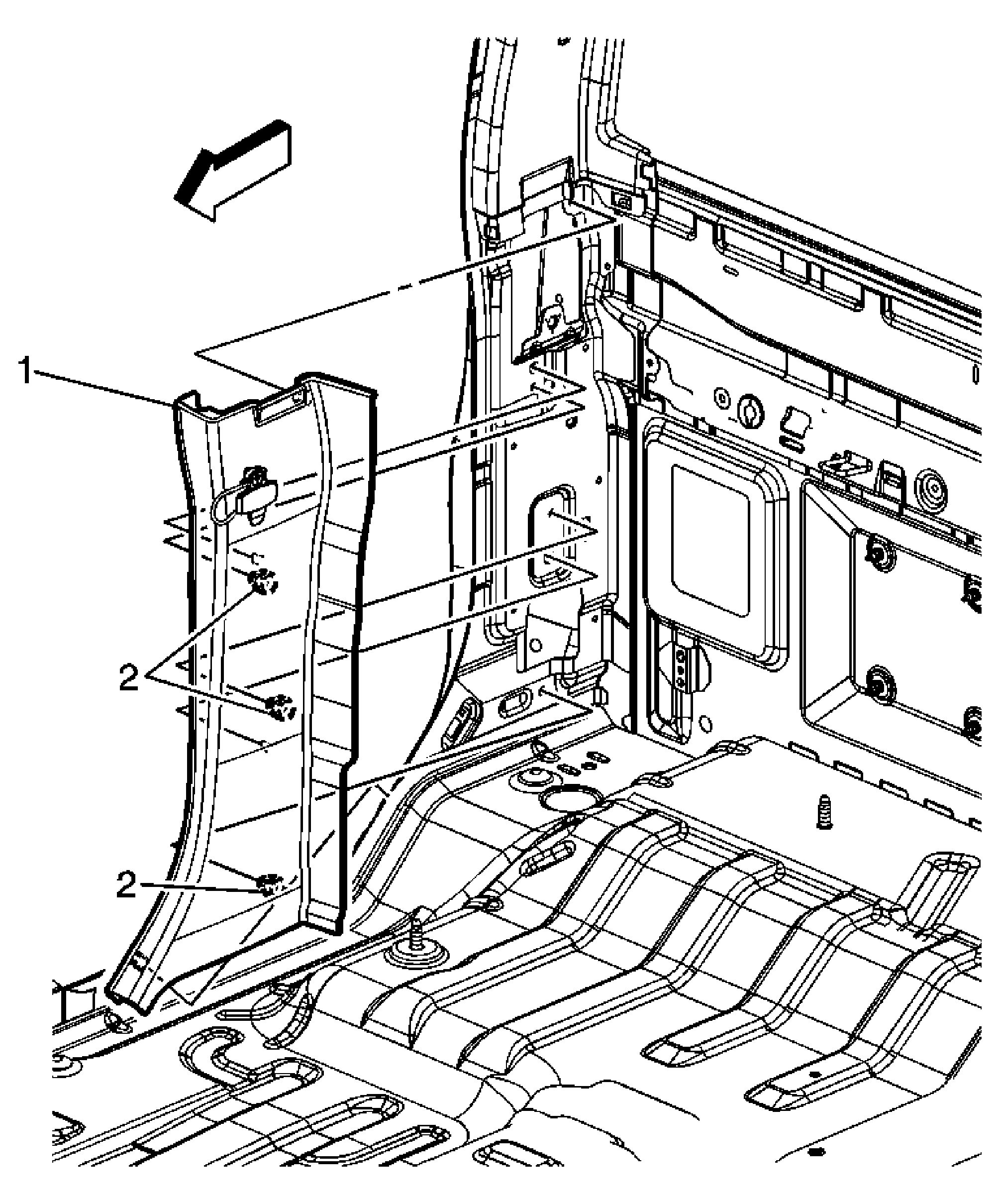

Fig 1: Body Side Rear Lower Trim Panel Replacement (H3T)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement . Fold the rear seat flat to the stowed position. Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement (H3T) .
1	Body Side Rear Lower Trim Panel Assembly Procedure: Grasp the molding assembly and pull it outward disengaging the clips securing it to the body.
2	Retainer Clip

Callout

Component Name

Preliminary Procedure

Remove the rear door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement .
Fold the rear seat flat to the stowed position.
Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement (H3T) .

Body Side Rear Lower Trim Panel Assembly
Procedure:
Grasp the molding assembly and pull it outward disengaging the clips securing it to the body.

Retainer Clip
