Radio Speaker Amplifier Replacement (H3T)

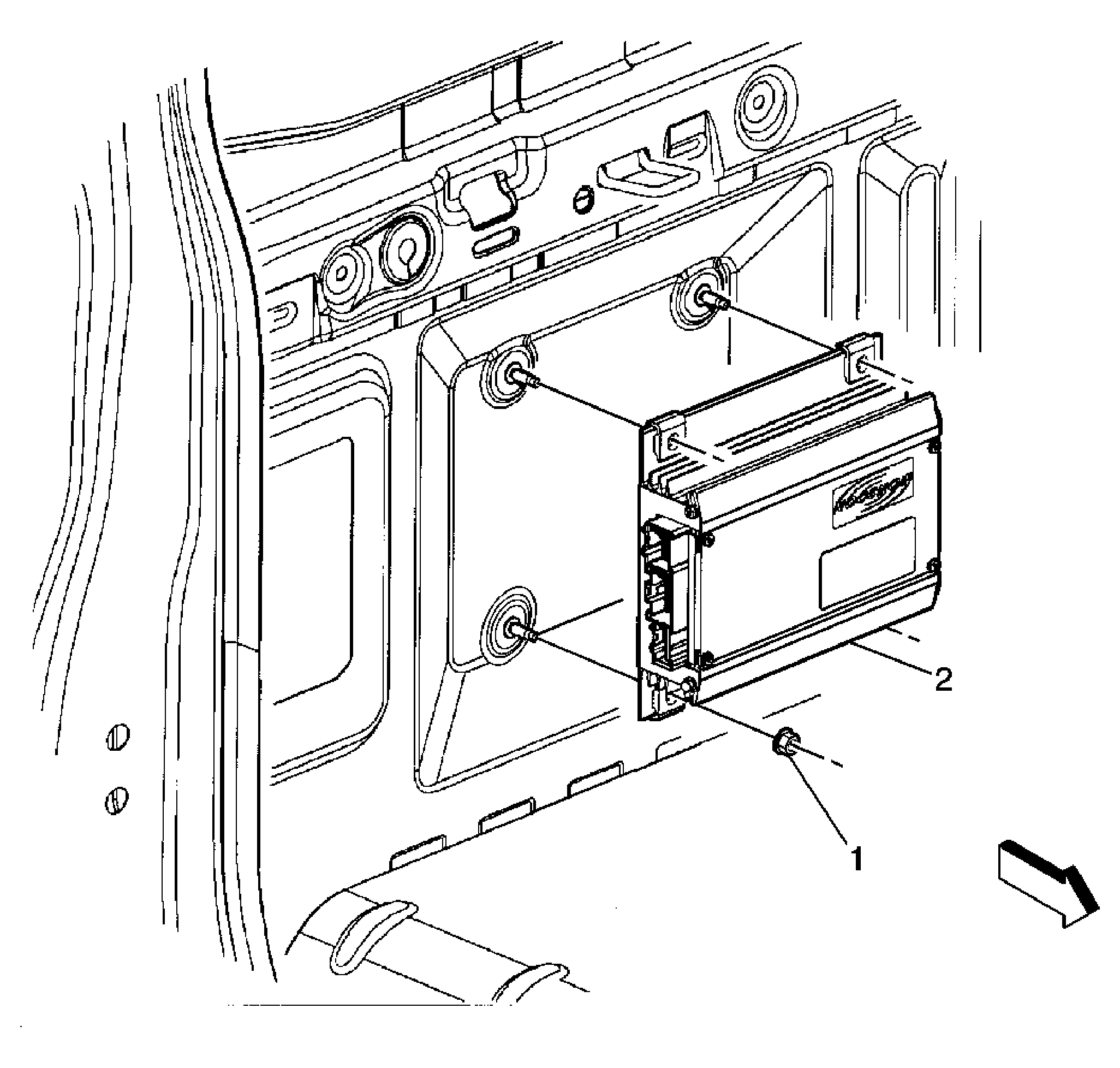

Fig 1: Radio Speaker Amplifier (H3T)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement (H3T) .
1	Radio Speaker Amplifier Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten:  5 N.m (44 lb in)
2	Radio Speaker Amplifier Assembly Procedure:  Disconnect the electrical connections.
