Rear Seat Heater Control Module Replacement (AL4)

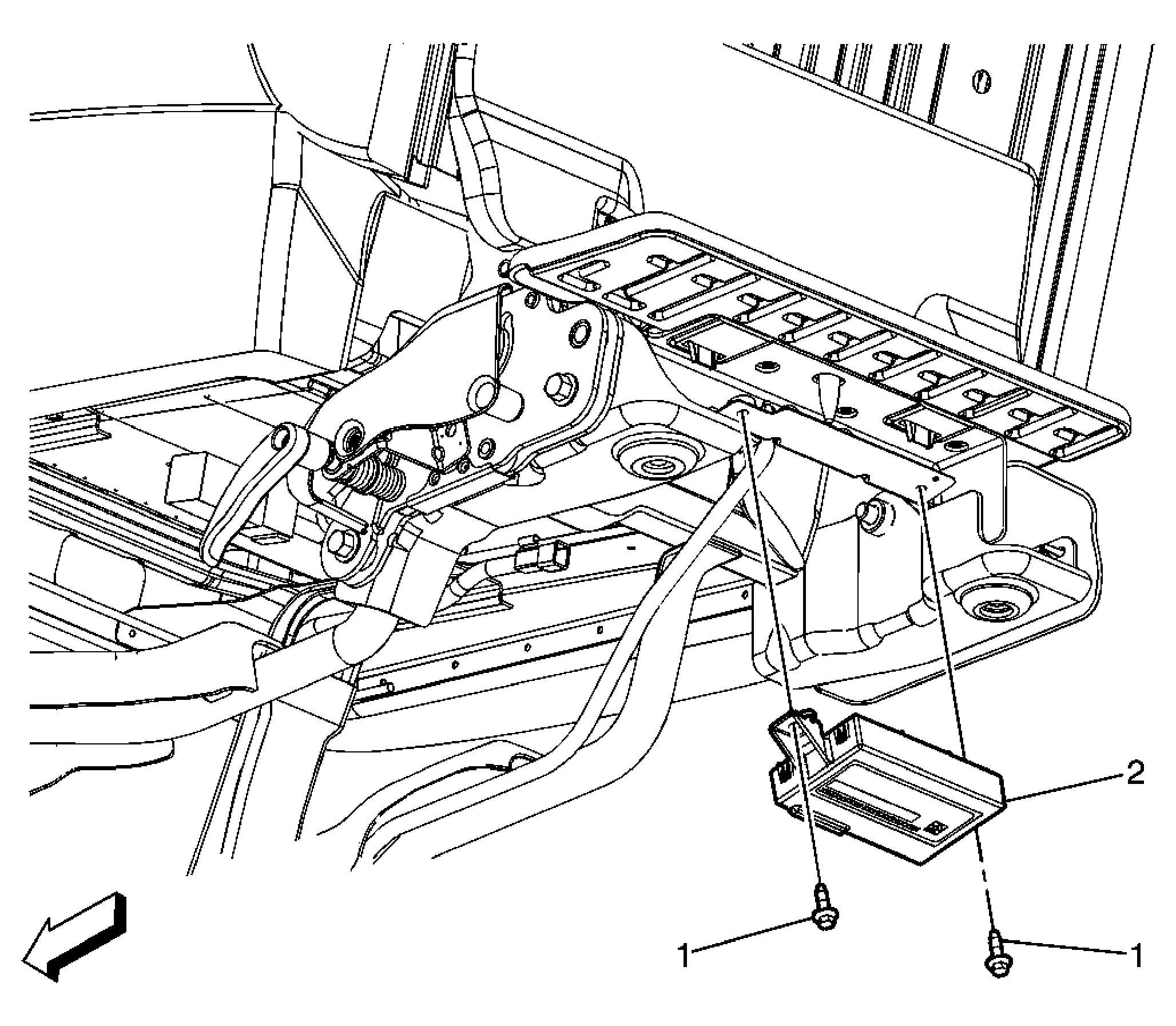

Fig 1: Identifying Rear Seat Heater Control Module (AL4)
GM2116413Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear seat. Refer to Rear Seat Replacement (AL4) or Rear Seat Replacement (without AL4) .
1 Rear Seat Heater Control Module Fastener(Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Rear Seat Heater Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Refer to Control Module References for programming and set-up information.
