Hood Hinge Replacement

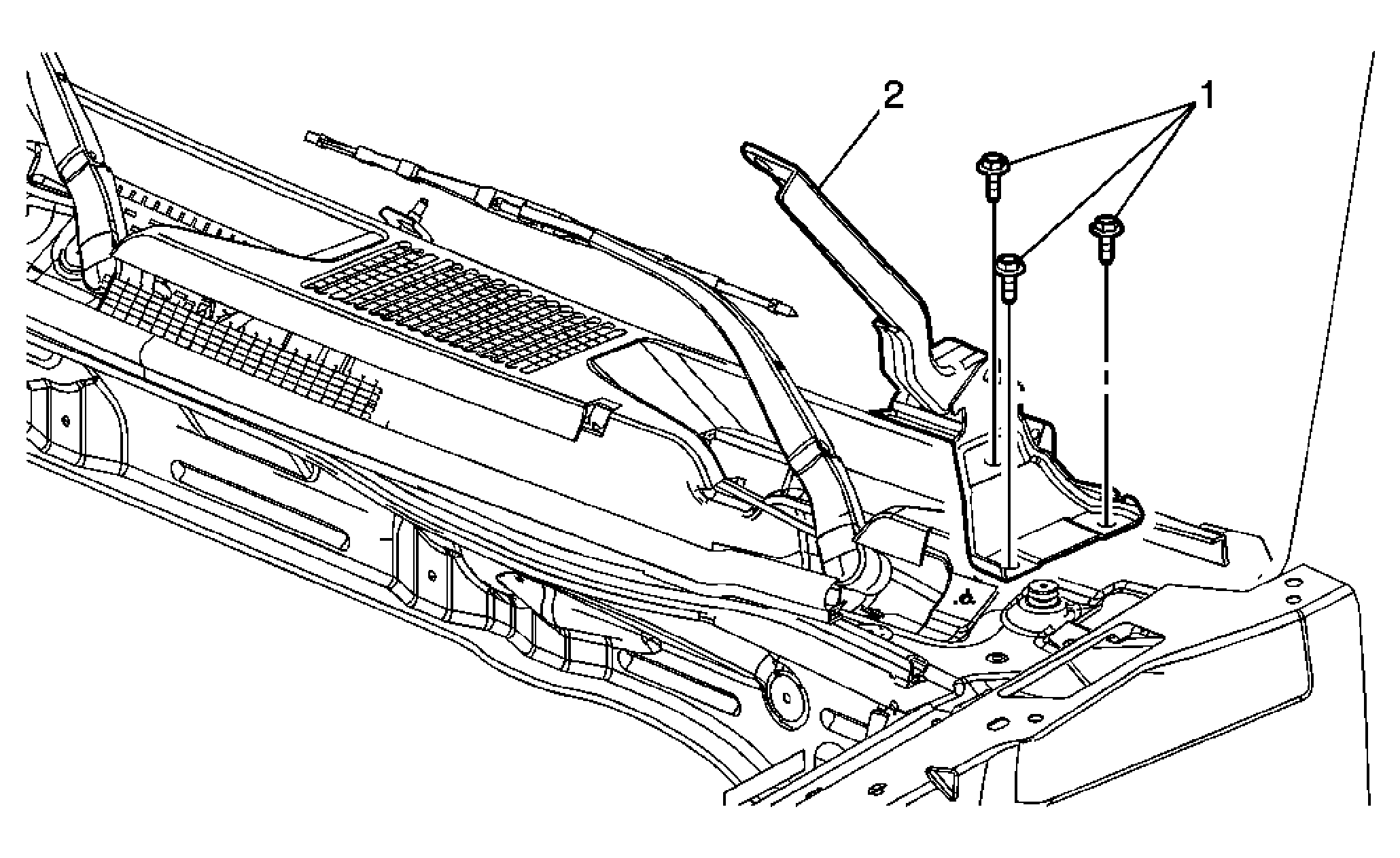

Fig 1: Hood Hinge

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the hood. Refer to Hood Replacement . Remove the air inlet grille - non functional. Refer to Non-Functional Air Inlet Grille Panel Replacement .
1	Bolts, Hood Hinge (Qty: 3) Tighten: 25 N.m (19 lb ft)
2	Hood Hinge

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the hood. Refer to Hood Replacement .
Remove the air inlet grille - non functional. Refer to Non-Functional Air Inlet Grille Panel Replacement .

Bolts, Hood Hinge (Qty: 3)

Tighten: 25 N.m (19 lb ft)

Hood Hinge
