Hood Replacement

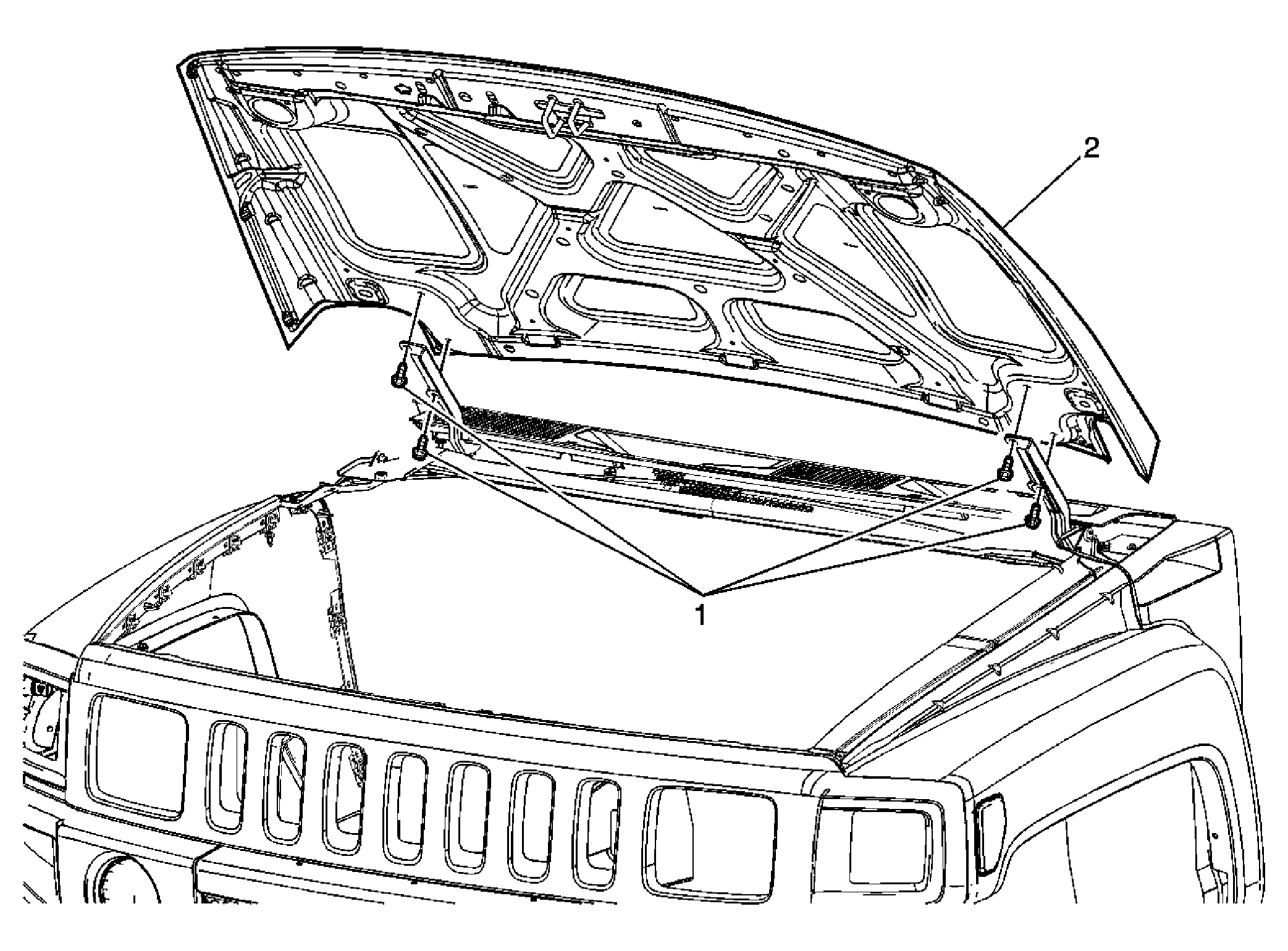

| Callout | Component Name |
|---|---|
|
CAUTION:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
|
|
| 1 | Hood Bolt (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 25 N.m (19 lb ft) |
| 2 | Hood Tip: Mark the location of the hinge. |
