Rear Window Wiper Motor Replacement

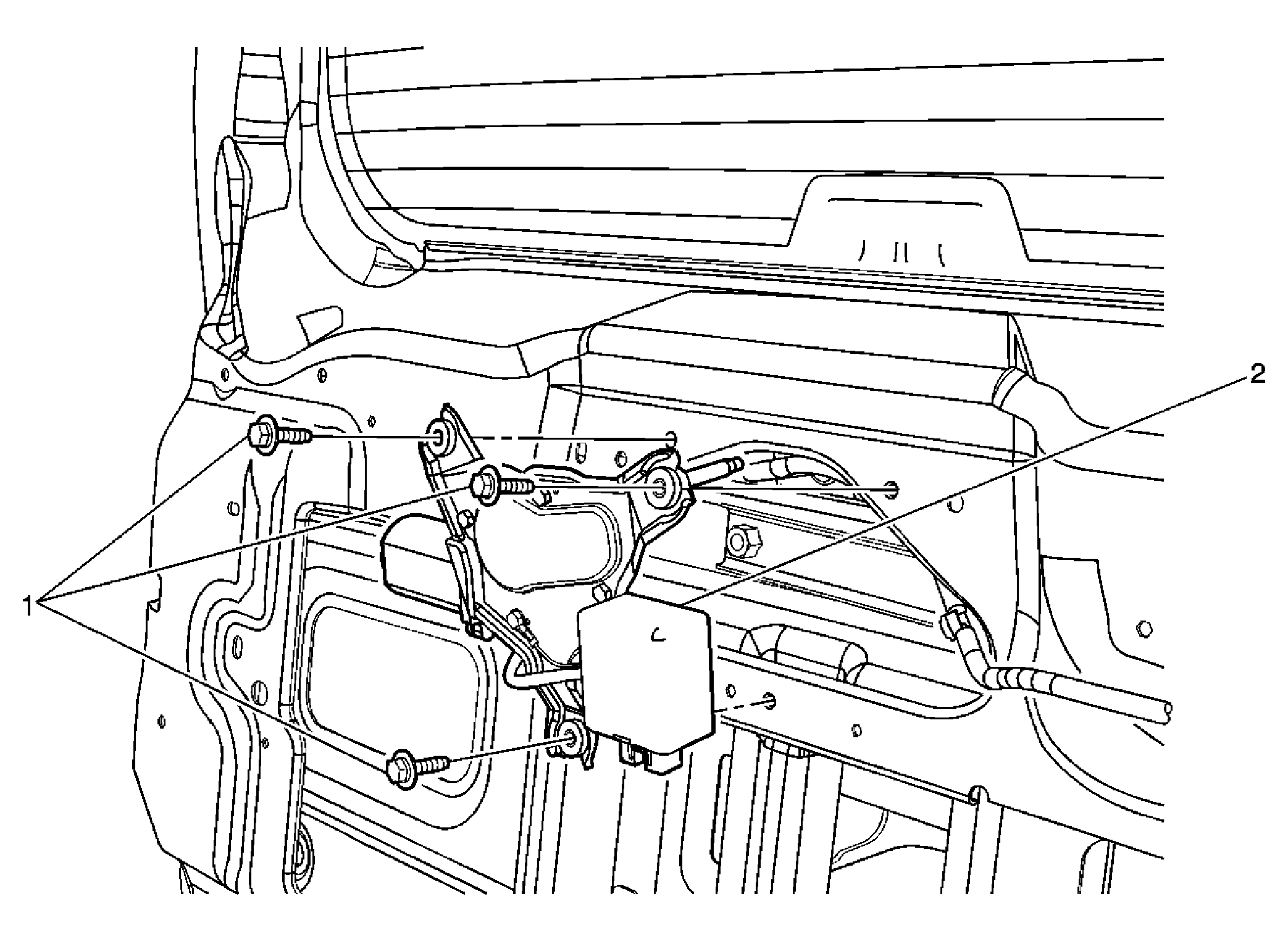

Fig 1: Rear Window Wiper Motor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear wiper arm. Refer to Rear Window Wiper Arm Replacement . Remove the jack stowage cover. Remove the jack stowage tool kit.
1	Bolts, Rear Wiper Motor (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Motor, Rear Window Wiper (Qty: 1) Tip: Pull motor rearward to access washer hose and electrical connections, lower motor into endgate and remove from exterior pivot shaft grommet.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear wiper arm. Refer to Rear Window Wiper Arm Replacement .
Remove the jack stowage cover.
Remove the jack stowage tool kit.

Bolts, Rear Wiper Motor (Qty: 3)

Tighten: 10 N.m (89 lb in)

Motor, Rear Window Wiper (Qty: 1)
Tip: Pull motor rearward to access washer hose and electrical connections, lower motor into endgate and remove from exterior pivot shaft grommet.
