Rear Window Wiper Arm Replacement

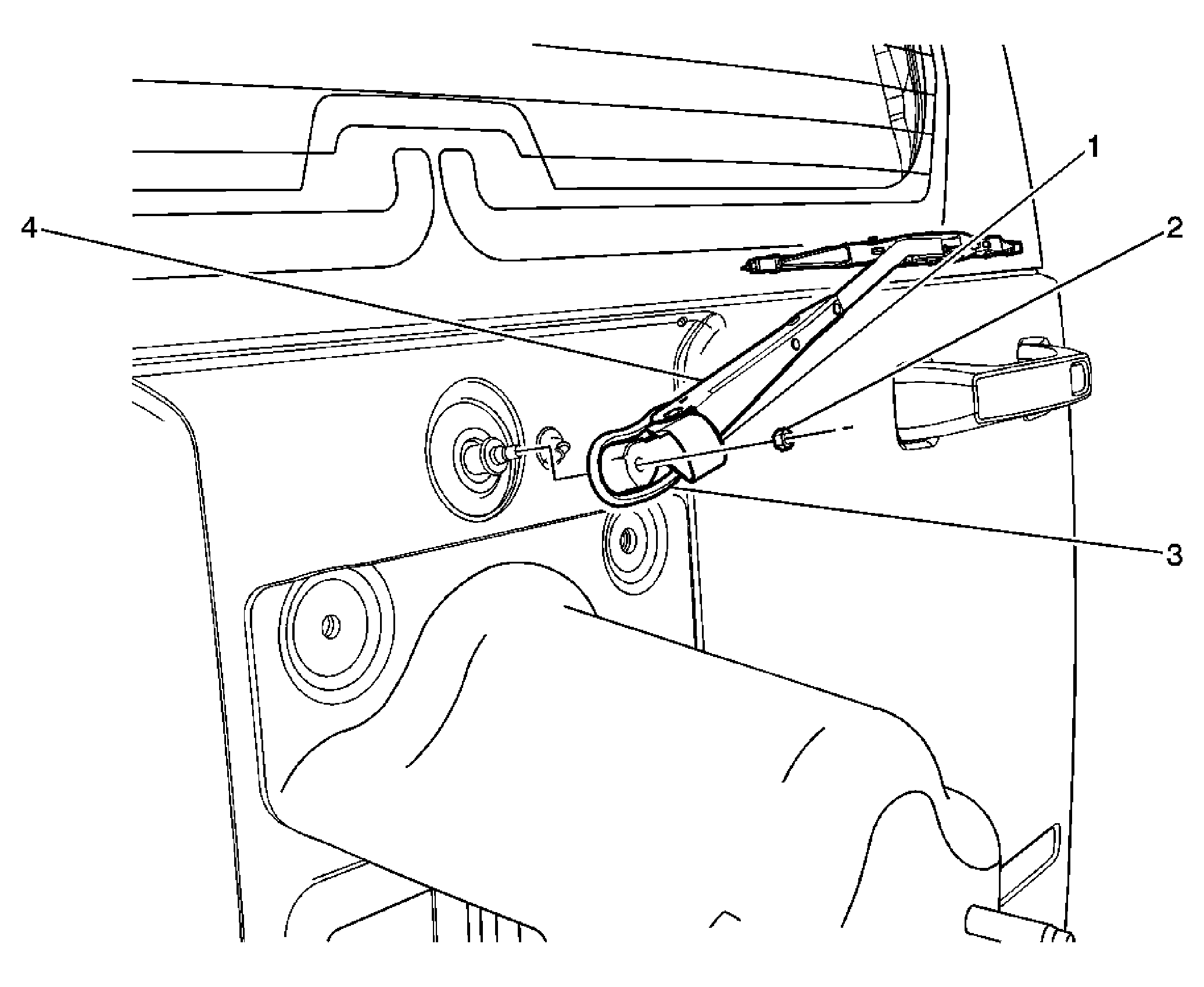

Fig 1: Rear Window Wiper Arm Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the spare wheel from the spare tire carrier. Remove the wiper arm blade. Refer to Rear Window Wiper Blade Replacement .
1	Rear Wiper Arm Finish Cover Tip: Release locking tab from under end of cover and lift to access nut.
2	Rear Window Wiper Motor Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tip: Hold the rear wiper blade to the locating dot in the blackout area of the rear window while securing the nut. Tighten: 9 N.m (80 lb in)
3	Rear Wiper Washer Hose Tip: Disconnect at the endgate elbow and re-route clockwise around motor pivot shaft.
4	Rear Window Wiper Assembly Arm
