Rear Window Wiper Blade Replacement

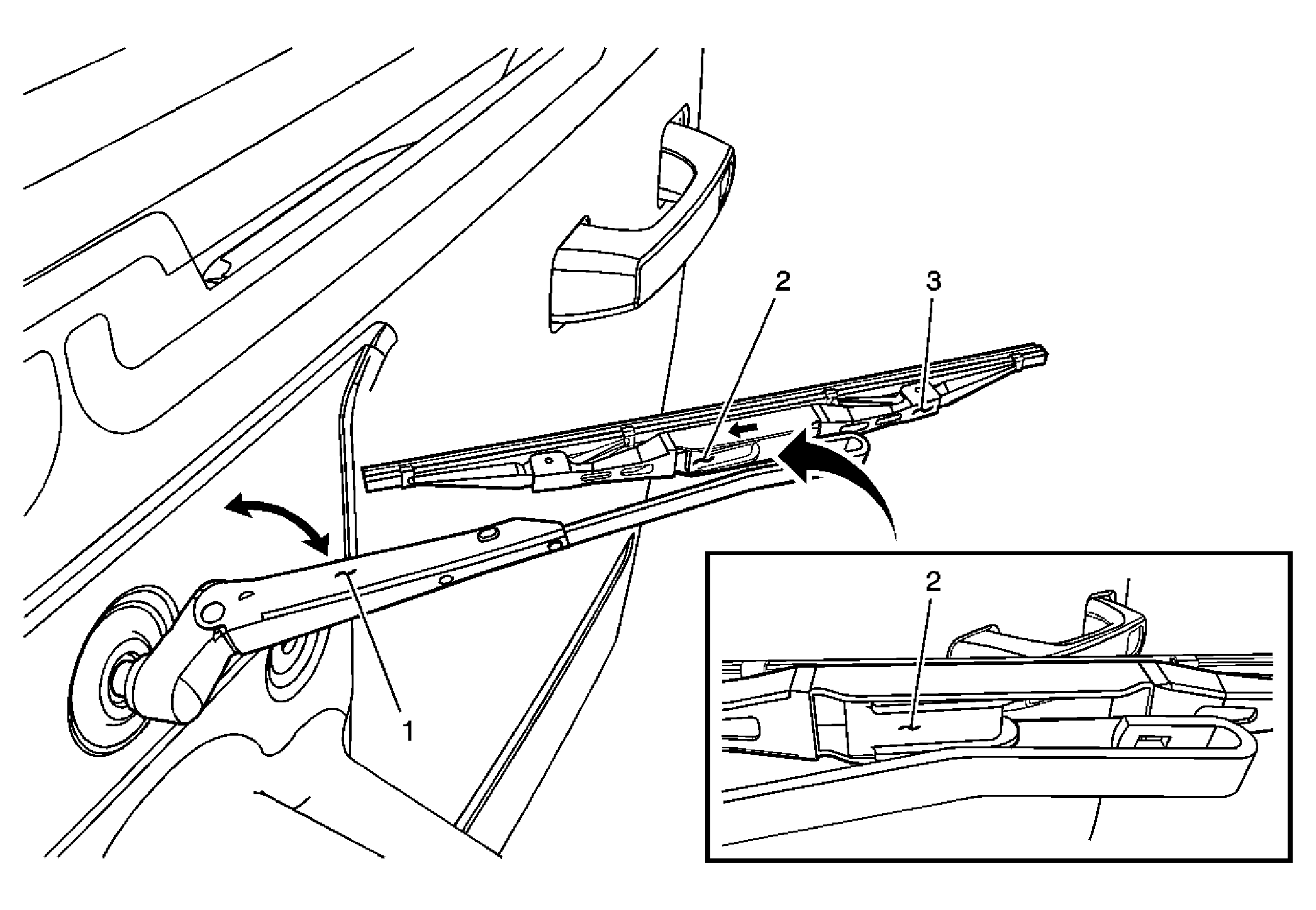

Fig 1: Rear Window Wiper Blade Replacement
GM1557604Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Arm, Rear Window Wiper (Qty: 1)
Tip:  Lift wiper arm slightly off rear window.
2 Tab, Sheep Hook
Tip:  Lift tab to release blade from arm.
3 Blade, Rear Window Wiper (Qty: 1)
Tip:  Push blade inward to release from arm.
