Luggage Carrier Replacement

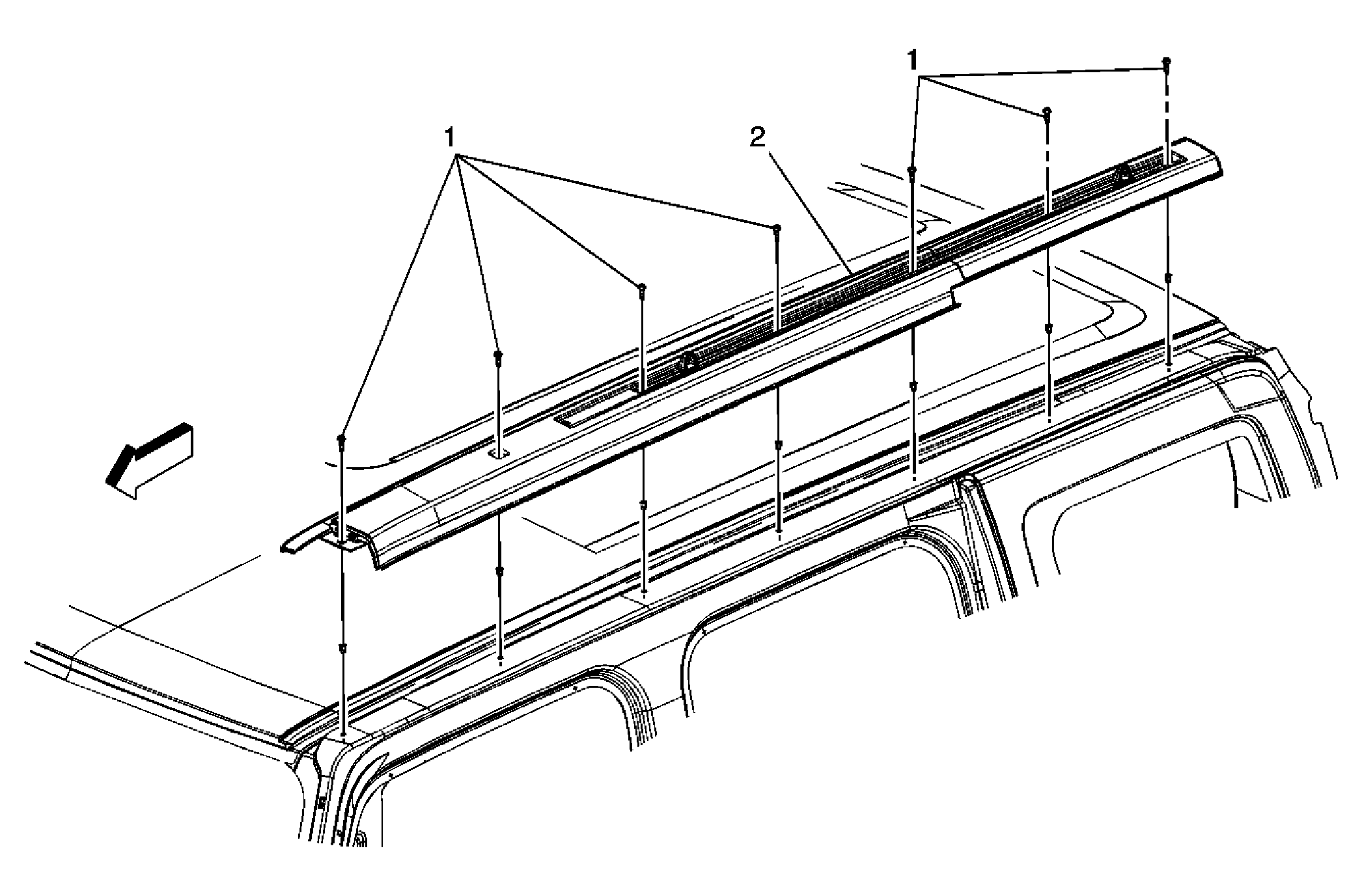

Fig 1: Luggage Carrier Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the RT or LT windshield pillar molding. Refer to Windshield Side Reveal Molding Replacement .
1	Luggage Carrier Side Rail Screws (Qty: 7) NOTE: Refer to Fastener Notice . Tip: The screws are located on the inside of the luggage rail. Tighten: 4 N.m (35 lb in)
2	Luggage Carrier Side Rail
