Windshield Side Reveal Molding Replacement

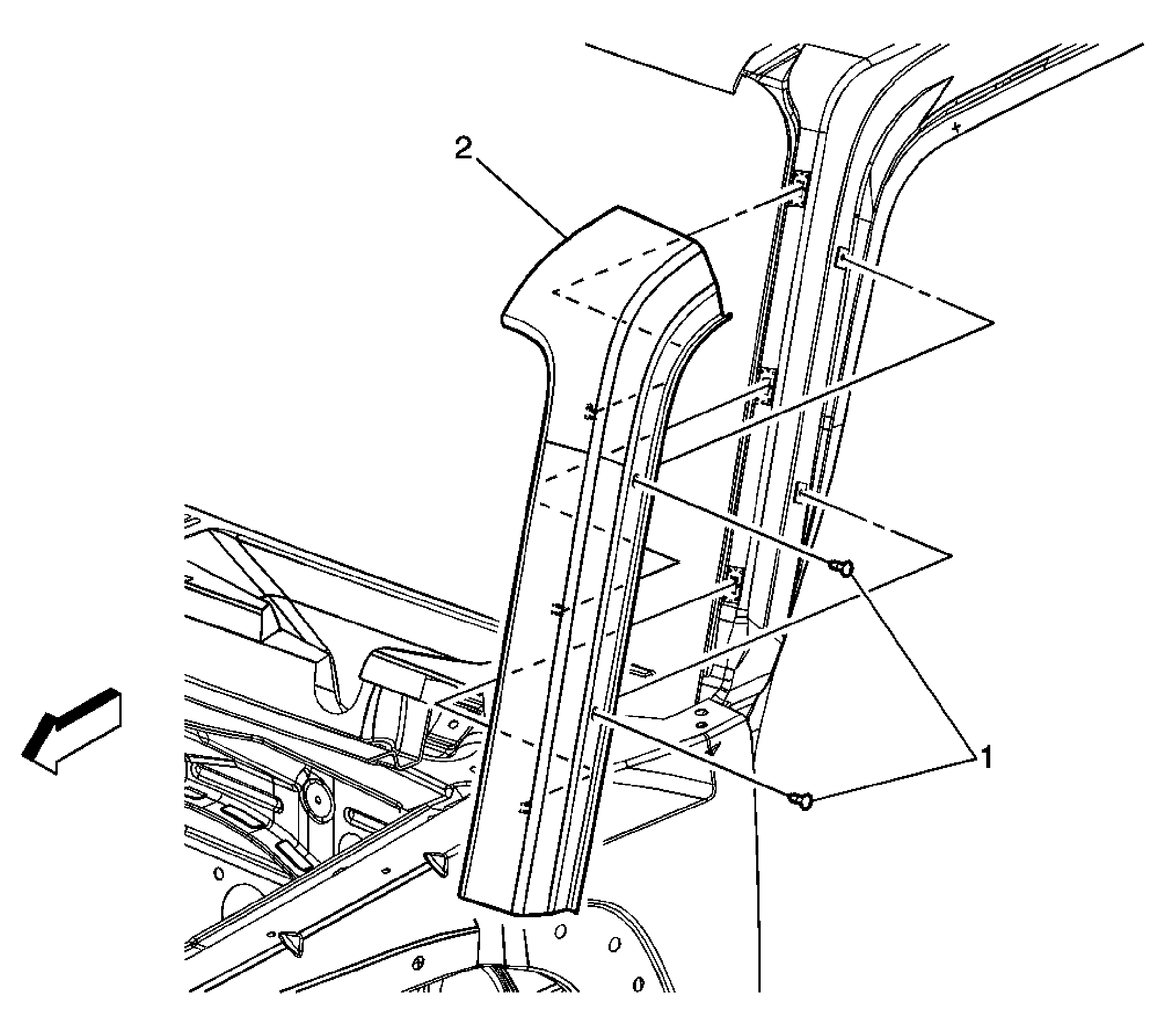

Fig 1: Windshield Pillar Reveal Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the non functional air inlet grille panel. Refer to Non-Functional Air Inlet Grille Panel Replacement . Open either the left or right front door and release the auxiliary weatherstrip up to the roof header to access the windshield side reveal molding screws.
1	Screws, Windshield Reveal Molding (Qty: 2) Tip: Pull reveal molding forward to release the tabs from the integral retention clips. Tighten: 2 N.m (18 lb in)
2	Molding, Windshield Reveal

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the non functional air inlet grille panel. Refer to Non-Functional Air Inlet Grille Panel Replacement .
Open either the left or right front door and release the auxiliary weatherstrip up to the roof header to access the windshield side reveal molding screws.

Screws, Windshield Reveal Molding (Qty: 2)
Tip: Pull reveal molding forward to release the tabs from the integral retention clips.

Tighten: 2 N.m (18 lb in)

Molding, Windshield Reveal
