Front Floor Console Compartment Door Latch Replacement

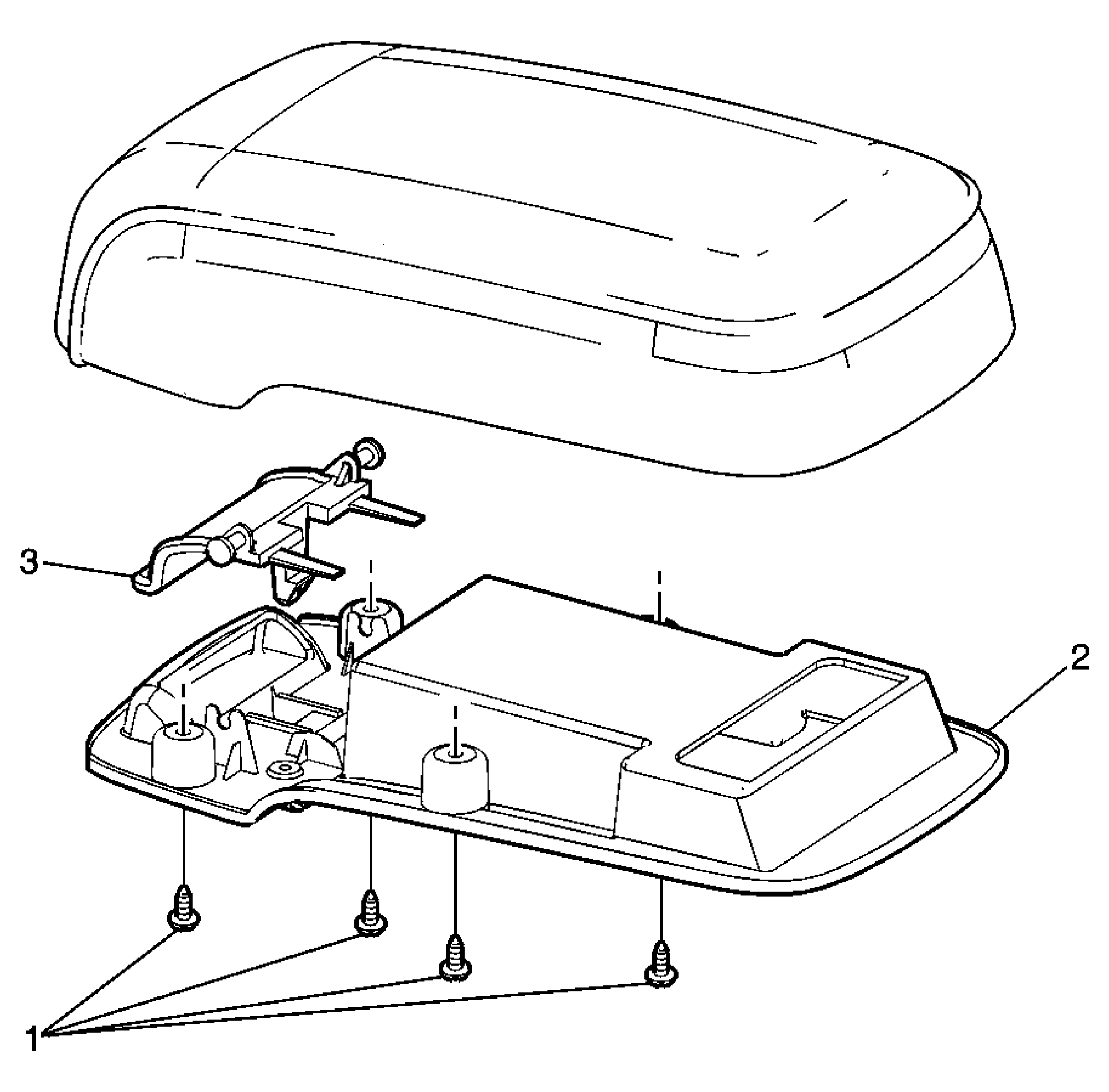

Fig 1: Latch Replacement - Console Compartment Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures:  Remove the center console door. Refer to Front Floor Console Compartment Door Replacement .
1	Console Compartment Door Panel Screws (Qty: 4) NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
2	Console Compartment Door Panel
3	Console Compartment Door Latch Assembly
