Front Floor Console Compartment Door Replacement

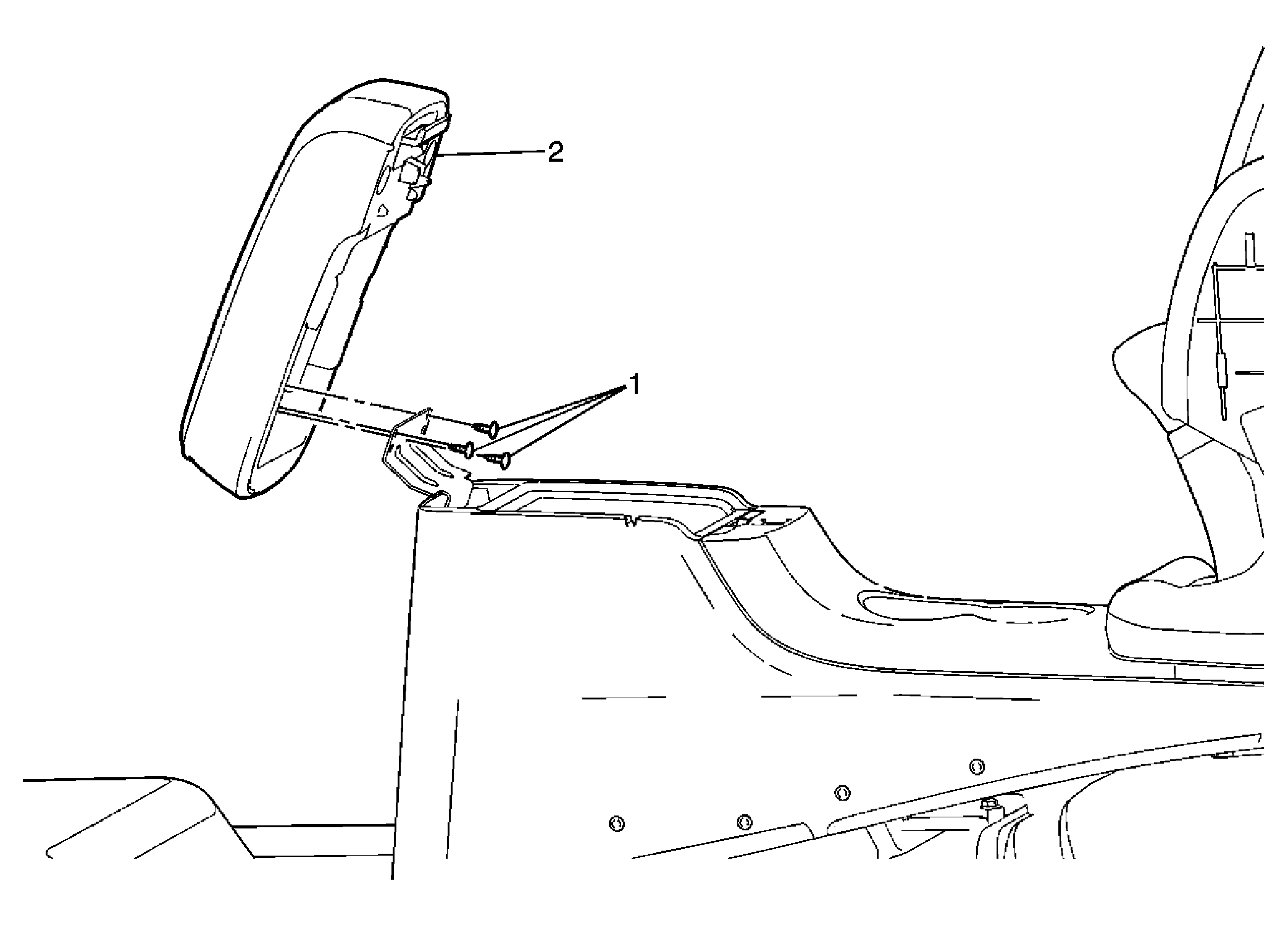

Fig 1: Door Replacement - Console Compartment Center

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Screws, Console Door (Qty: 3) Tighten:  2 N.m (18 lb in)
2	Door Assembly, Console
