Cable Removal - Shift Control End

  1. Lower the vehicle.
  2. Remove the cowl side trim panel. Refer to Cowl Side Trim Panel Replacement .
  3. Pull the driver side carpet up, enough to access the range selector cable.

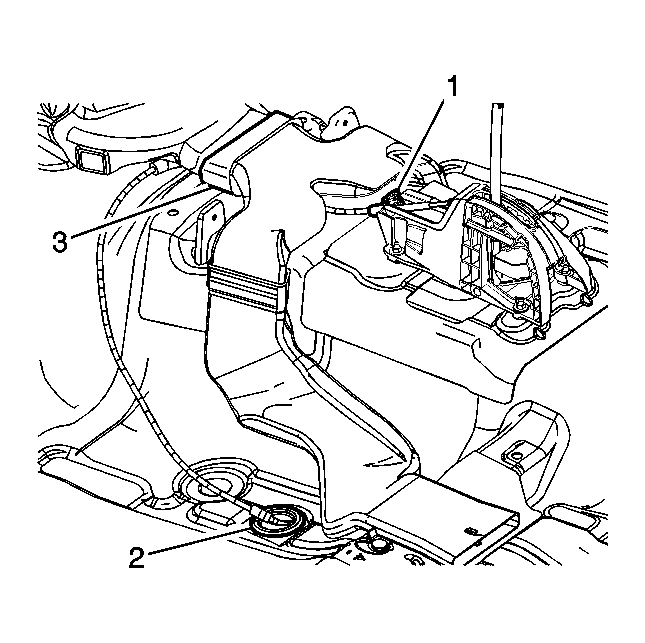

    4. Fig 1: Identifying Cable & Floor Panel Grommet
    GM1563042Courtesy of GENERAL MOTORS CORP.
  4. Pull the cable grommet (2) up through the floor panel.
  5. Make note of the cable routing under the heat duct (3).

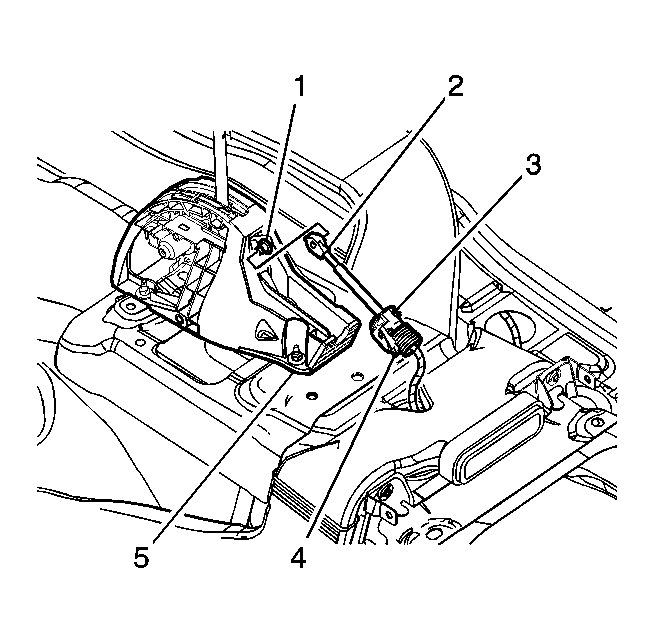

    6. Fig 2: View Of Transmission Range Selector Lever, Shift Control Assembly & Range Selector Cable
    GM1563036Courtesy of GENERAL MOTORS CORP.
  6. Use a flat-bladed tool to separate the range selector cable (2) from the transmission range selector lever ball stud (1).
  7. Release the cable retainer (4) from the shift control assembly (5).
  8. Remove the range selector cable (3) from the vehicle.
