Cowl Side Trim Panel Replacement

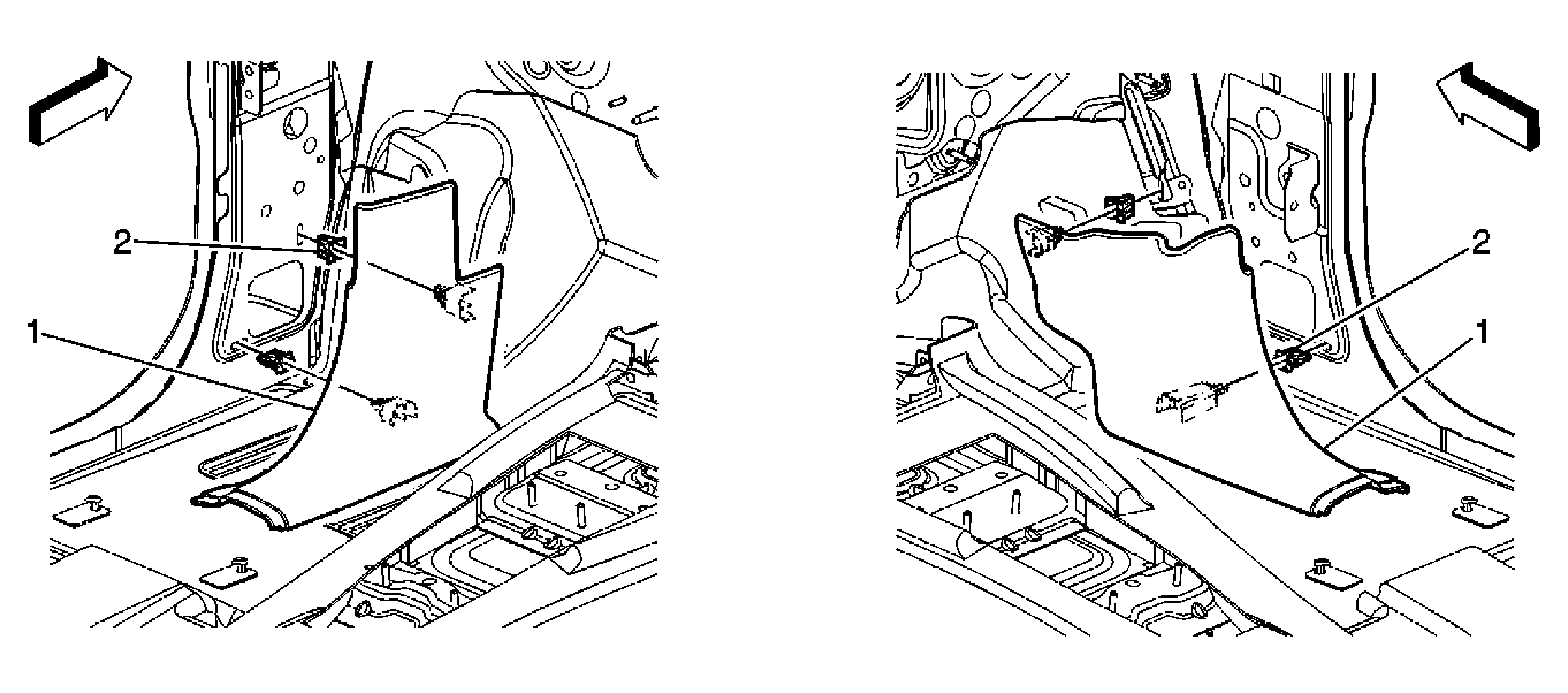

Fig 1: Cowl Side Trim Panel
GM1557603Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedures:
Remove the front door sill trim plate. Refer to Front Side Door Sill Plate Replacement .
1 Panel, Cowl Side Trim
2 Clip, Panel Cowl Side Trim (Qty: 2)
