Inflatable Restraint Passenger Presence System Replacement - Front

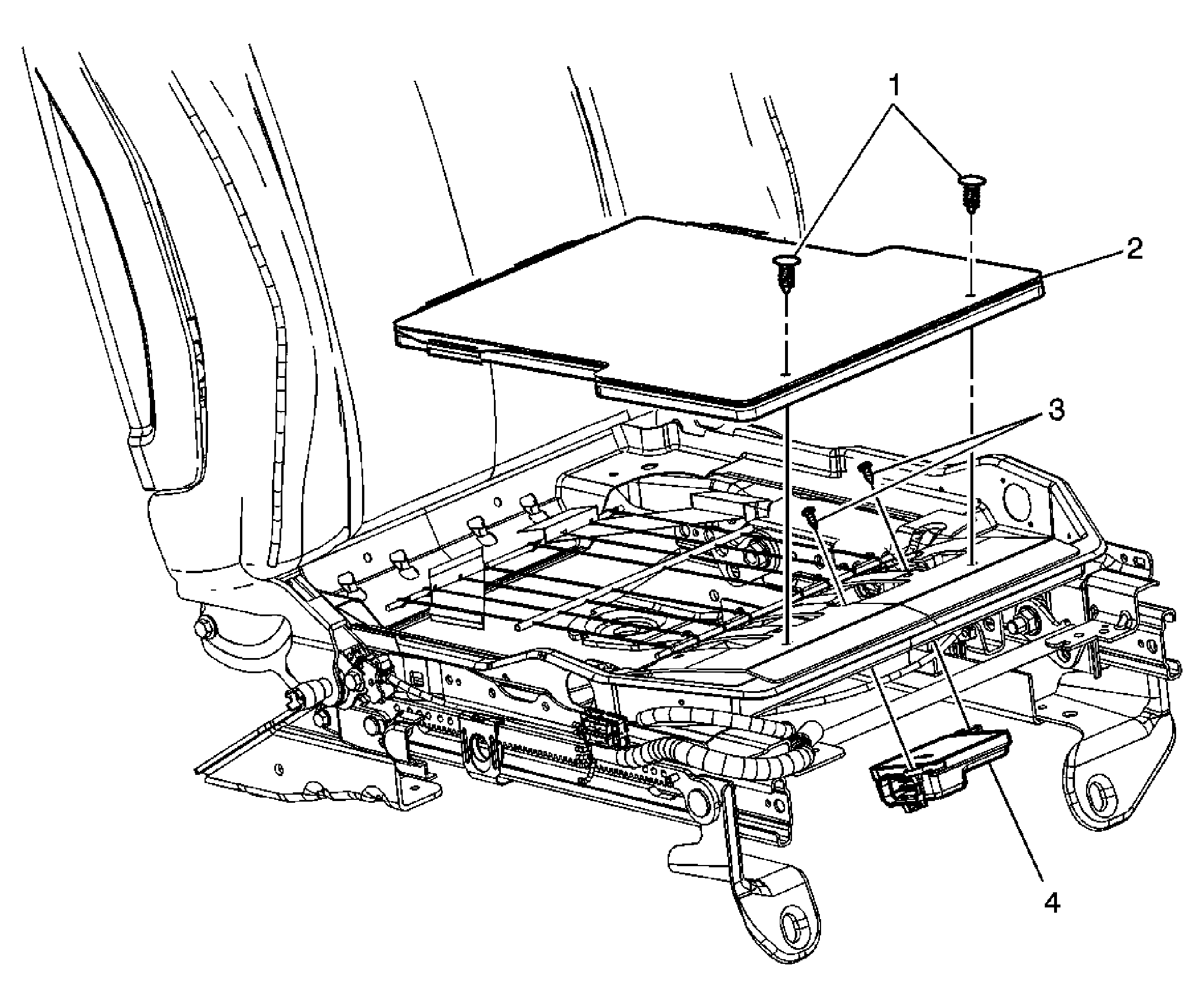

Fig 1: Inflatable Restraint Passenger Presence System Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly. NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front bucket seat. Refer to Front Seat Replacement - Bucket . Remove the seat cushion trim cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References . Program the inflatable restraint passenger presence system after replacement. Refer to Control Module References .
1	Retainer, Inflatable Restraint Passenger Presence System (Qty: 2)
2	Sensor, Inflatable Restraint Passenger Presence System Tip: Disconnect the electrical connector.
3	Screw, Inflatable Restraint Passenger Presence System Module (Qty: 2) Tighten: 8 N.m (71 lb in)
4	Module, Inflatable Restraint Passenger Presence System Tip: Disconnect the electrical connector.
