Front Seat Replacement - Bucket

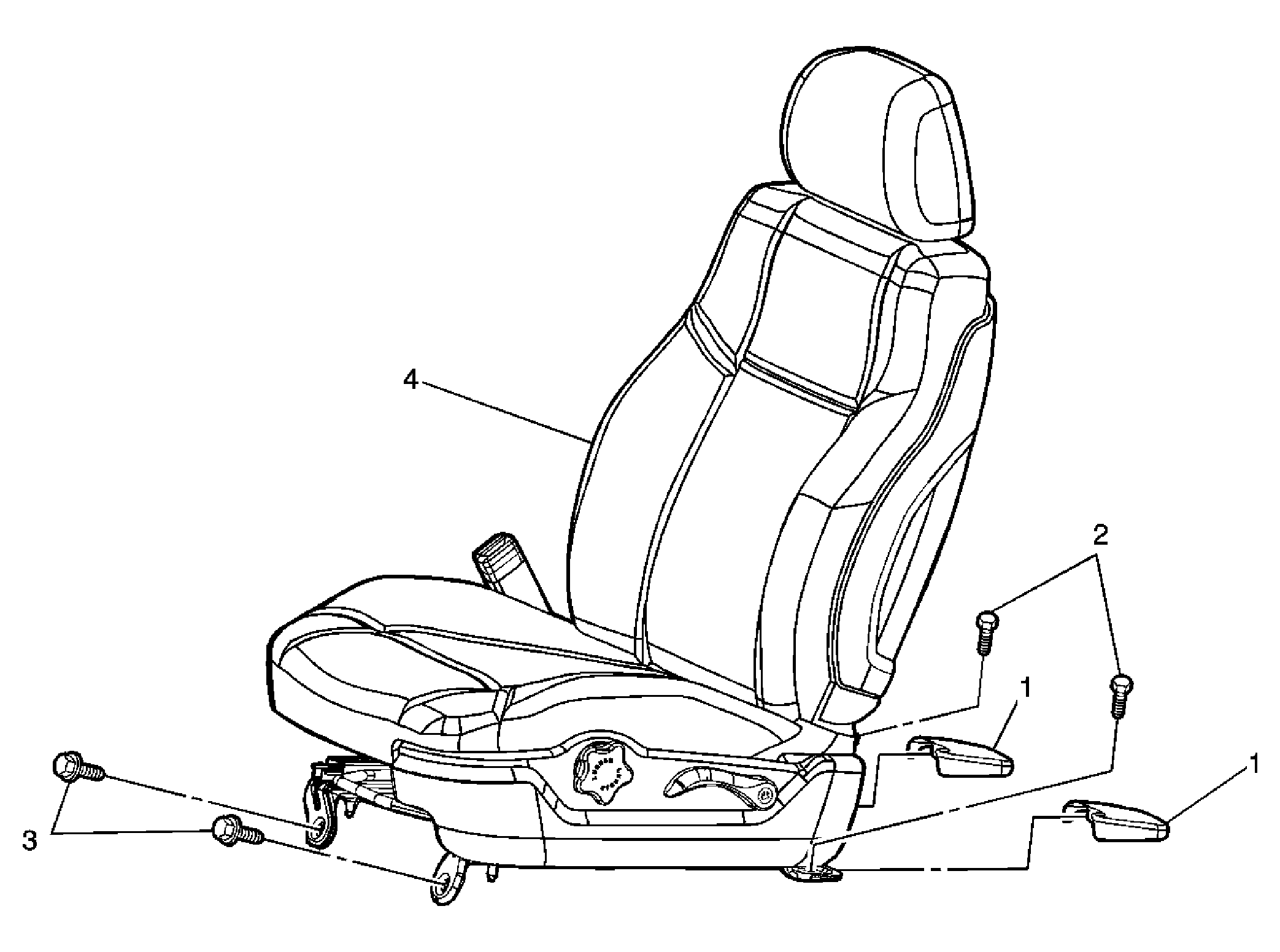

Fig 1: Seat Replacement - Front Bucket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Cover (Qty: 2)
2	Seat Assembly Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 52 N.m (38 lb ft)
3	Seat Assembly Bolt (Qty: 2) Tighten: 52 N.m (38 lb ft)
4	Front Seat Assembly Tip: Disconnect the front seat electrical connector, and passenger presence system connector, if equipped.
