Instrument Cluster Replacement (Left Hand Drive)

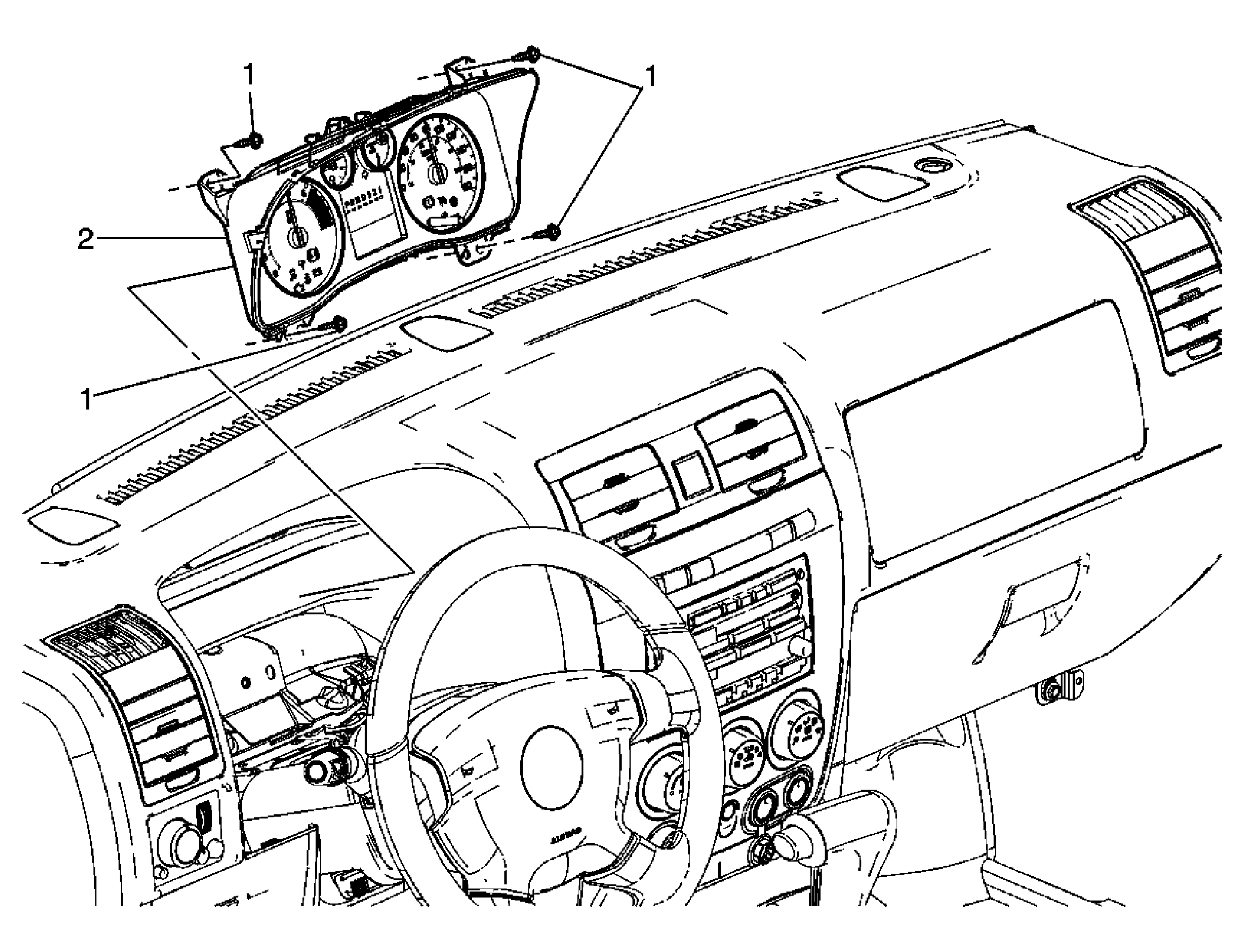

Fig 1: Instrument Cluster Replacement (Left Hand Drive)
GM1558939Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel cluster trim plate. Refer to Instrument Cluster Trim Panel Replacement (Left Hand Drive) or Instrument Cluster Trim Panel Replacement (Right Hand Drive) .
1 Instrument Panel Cluster Screw (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Instrument Panel Cluster Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Reprogram the instrument cluster. Refer to Control Module References .
