Instrument Cluster Trim Panel Replacement (Left Hand Drive)

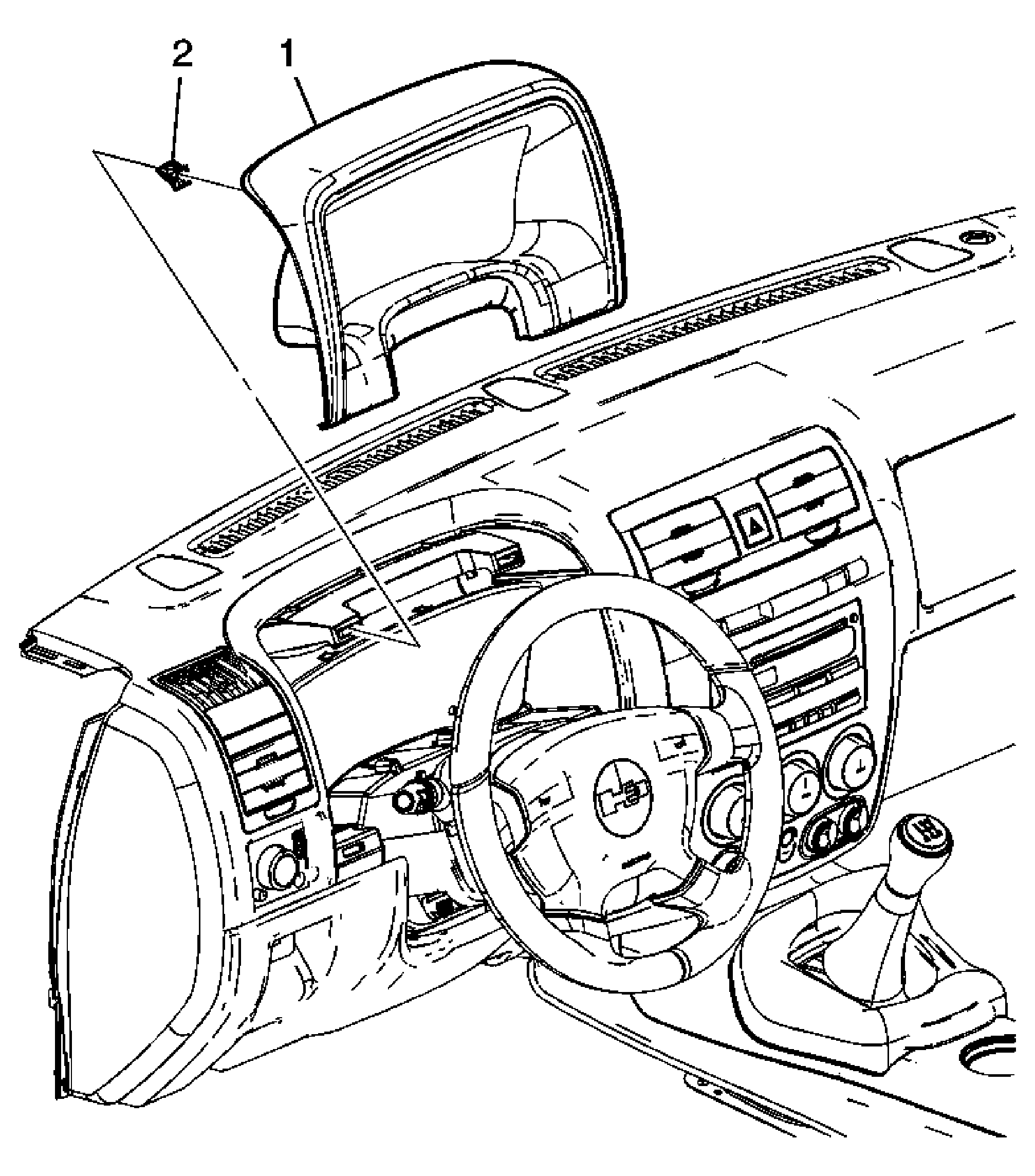

Fig 1: Instrument Cluster Trim Panel Replacement (Left Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Instrument Panel Cluster Trim Plate Assembly
2	Retainers Clip (Qty: 4)
