Parking Brake Actuator Replacement

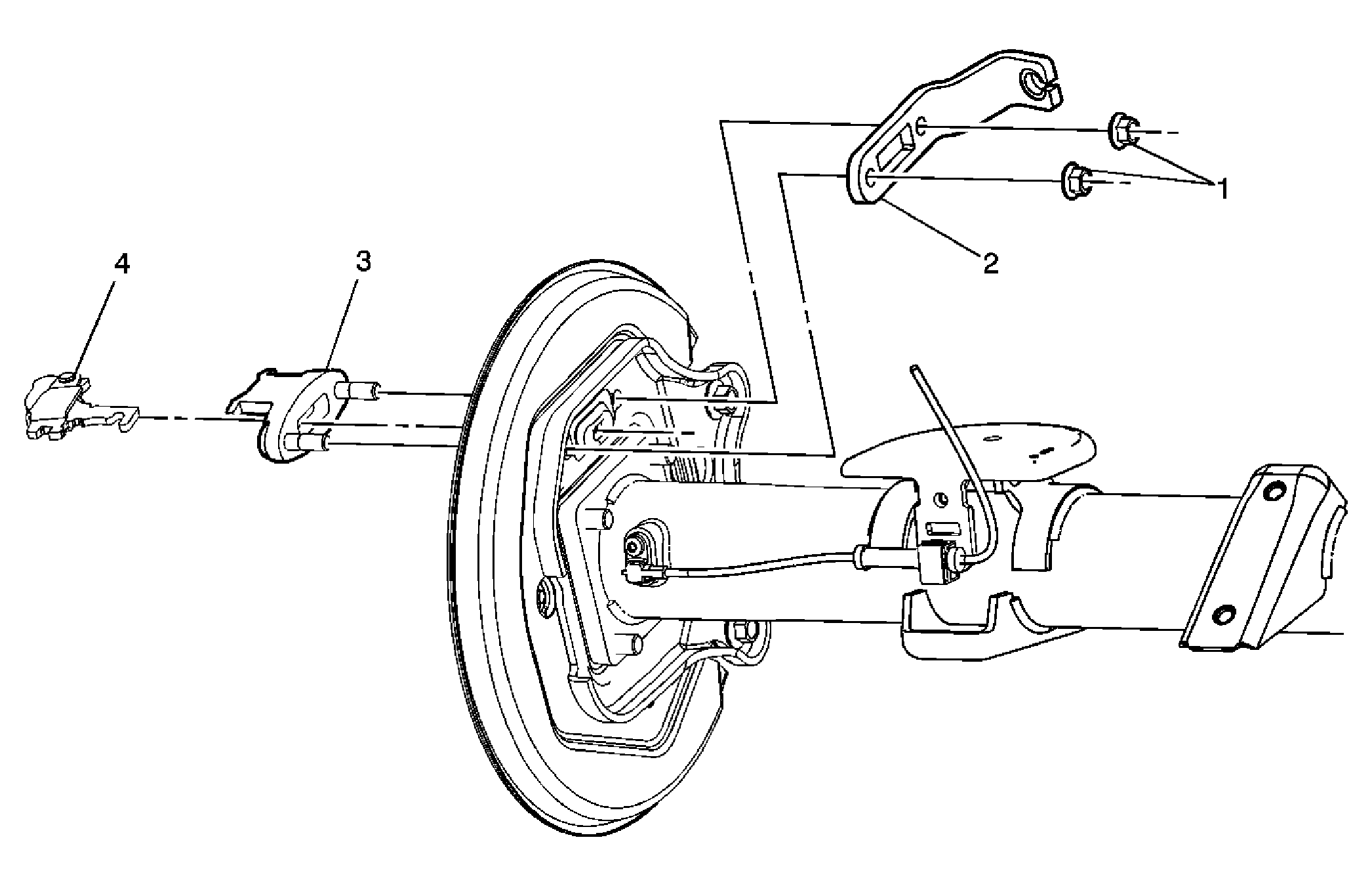

Fig 1: Replacing Parking Brake Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the park brake shoes. Refer to Parking Brake Shoe Replacement . Remove the park brake cable from the actuator. Refer to Parking Brake Rear Cable Replacement - Left Side for the left side, or Parking Brake Rear Cable Replacement - Right Side for the right. Remove the rear brake park brake shoes. Refer to Parking Brake Shoe Replacement .
1	Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 48 N.m (35 lb ft)
2	Bracket
3	Actuator Bracket
4	Actuator
