Installation Procedure

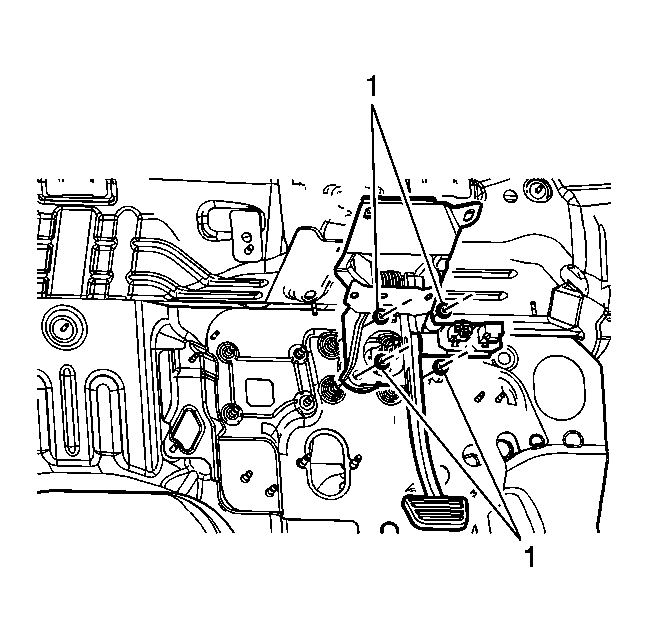

    Fig 1: Brake Master Cylinder Nuts
    GM1868413Courtesy of GENERAL MOTORS CORP.
  1. Install the brake pedal assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the 4 brake master cylinder nuts (1).

    Tighten:  Tighten the nuts to 27 N.m (20 lb ft).

    3. Fig 2: Upper Brake Pedal Bracket Bolts
    GM1868412Courtesy of GENERAL MOTORS CORP.
  3. Install the 2 upper brake pedal bracket bolts (1).

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

    4. Fig 3: Brake Pedal Assembly Components
    GM1868411Courtesy of GENERAL MOTORS CORP.
  4. Install the steering column. Refer to Steering Column Replacement .
  5. Install the brake pedal pushrod clevis pin (3).
  6. Install the brake pedal pushrod retainer (2).
  7. Verify the correct installation of the retainer by rotating the retainer 360 degrees.

    The retainer must rotate freely and not become disengaged from the groove in the clevis pin.

  8. Connect the stoplamp switch and cruise release switch electrical connectors (1).
  9. Adjust the stoplamp switch. Refer to Stop Lamp Switch Adjustment .
  10. Adjust the cruise release switch. Refer to Cruise Release Switch Adjustment .
  11. Install the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement (Left Hand Drive) or Driver Knee Bolster Bracket Replacement (Right Hand Drive) .
