Rear Brake Caliper Mount Plate Replacement

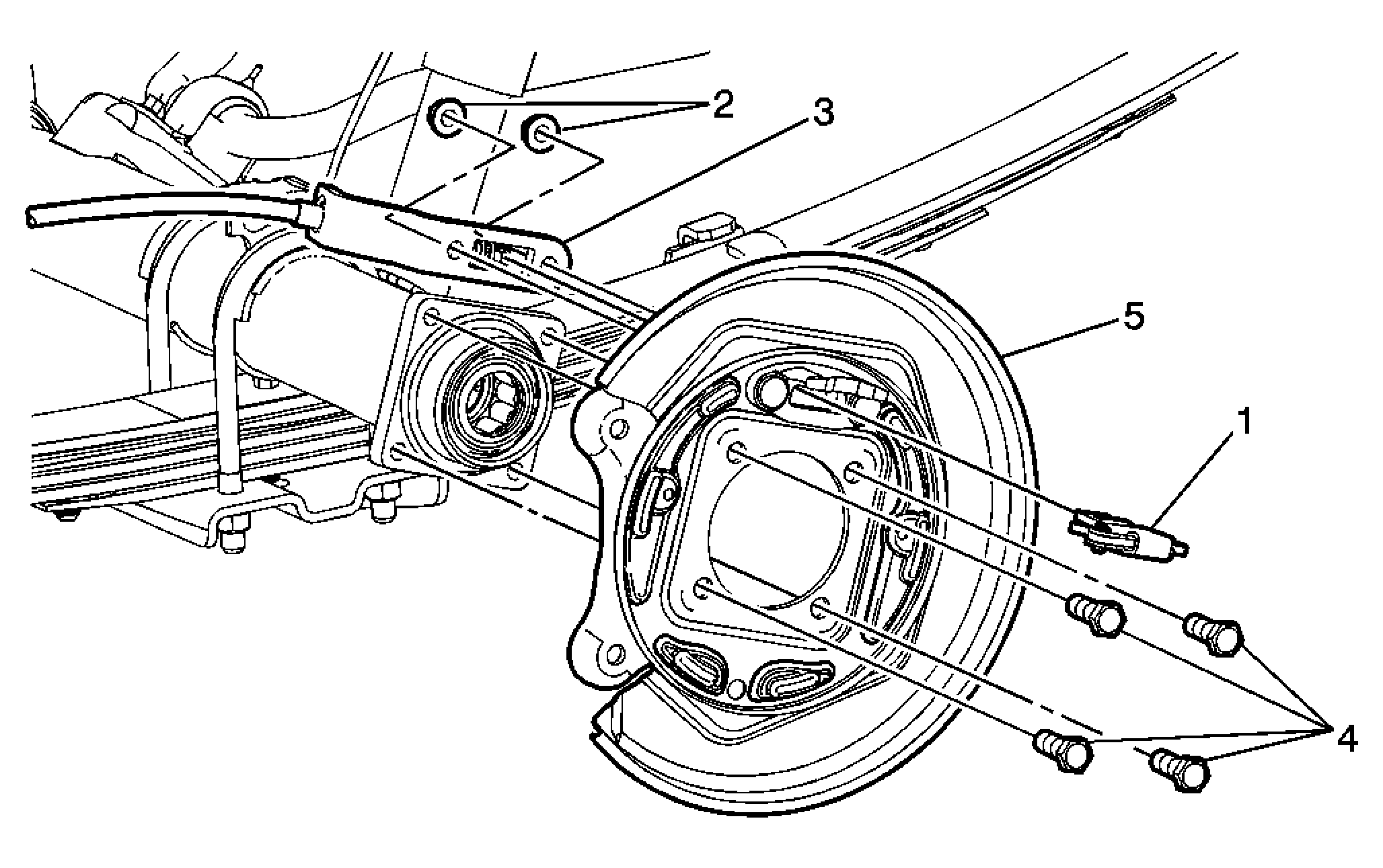

Fig 1: Disc Brake Backing Plate Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the axle shaft. Refer to Rear Axle Shaft Replacement . Remove the park brake shoe. Refer to Parking Brake Shoe Replacement .
1	Park Brake Actuator
2	Park Brake Cable Bracket Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 48 N.m (35 lb ft)
3	Park Brake Rear Cable Bracket
4	Rear Brake Caliper Mounting Plate Bolt (Qty: 4) Tighten: 135 N.m (100 lb ft)
5	Rear Brake Caliper Mounting Plate
