Rear Brake Caliper Bracket Replacement

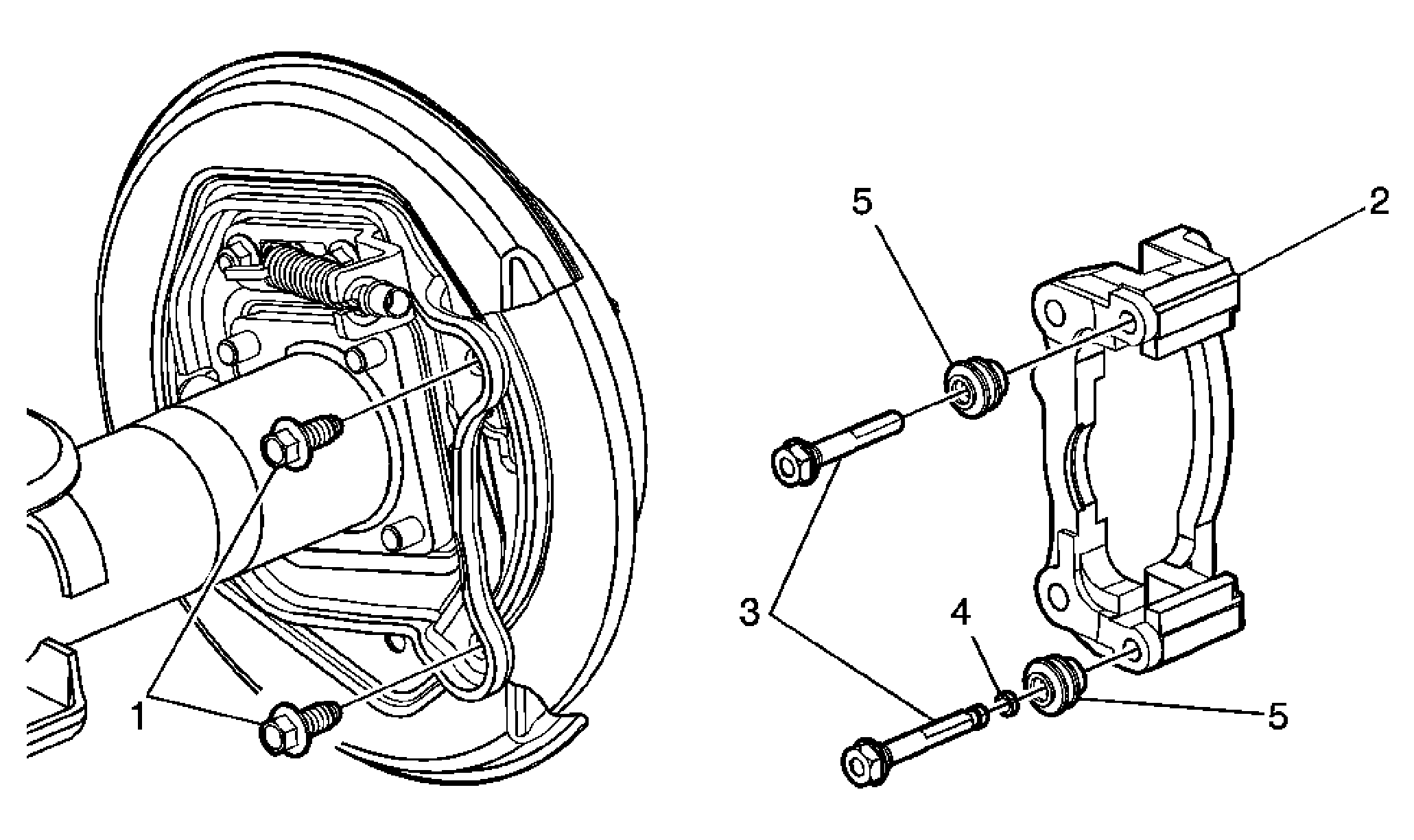

Fig 1: Brake Caliper Bracket Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . IMPORTANT: If removing the brake caliper bracket to access other vehicle components, remove the disc brake caliper, disc brake pads and the caliper bracket as an assembly. Remove the rear disc brake pads. Refer to Rear Disc Brake Pads Replacement .
1	Brake Caliper Bracket Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tip: Do NOT reuse the brake caliper bracket mounting bolts. Replace the bolts. Replace the brake caliper bracket bolts each time the bolts are removed. Tighten: 135 N.m (100 lb ft)
2	Rear Brake Caliper Bracket
3	Rear Disc Brake Caliper Guide Pin (Qty: 2) Tip: The disc brake caliper guide pins are not interchangeable. Note the location of the guide pins.
4	Rear Brake Caliper Guide Pin Seal Tip: The guide pin seal is installed on the lower disc brake caliper guide pin.
5	Rear Brake Caliper Guide Pin Boot (Qty: 2)
