Rear Disc Brake Pads Replacement

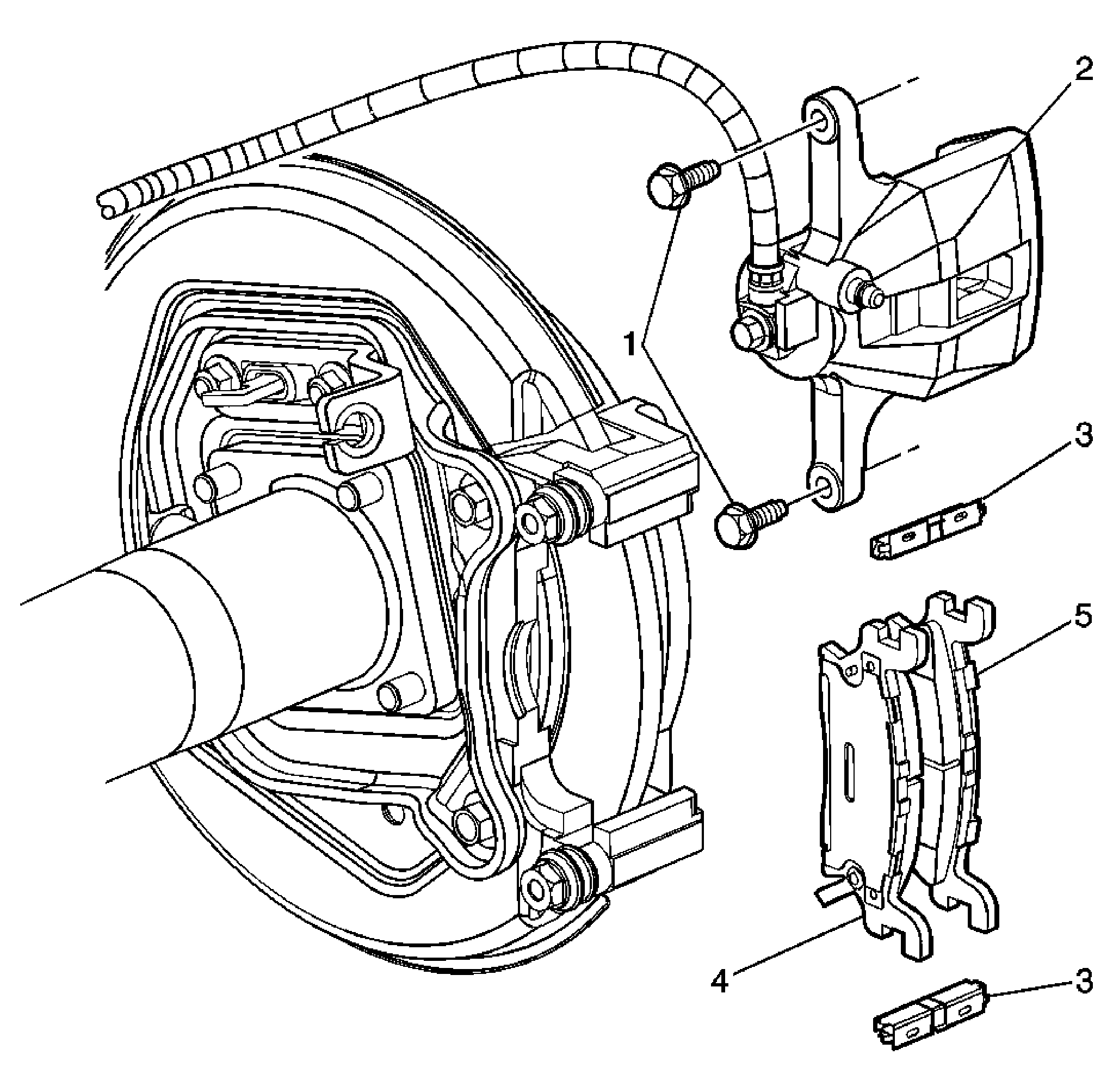

| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to Brake Dust Caution
.
CAUTION:
Refer to Brake Fluid Irritant Caution
.
NOTE:
Refer to Fastener Notice
. Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
. |
|
| 1 | Rear Disc Brake Caliper Bolt (Qty: 2) Tip: Pump the brake pedal in order to seat the new brake pads, then road test the vehicle in order to burnish the brake pads. Refer to Brake Pad and Rotor Burnishing . Tighten: 36 N.m (27 lb ft). |
| 2 | Rear Disc Brake Caliper |
| 3 | Rear Disc Brake Caliper Bracket Retainer (Qty: 2) |
| 4 | Rear Disc Brake Inner Pad Assembly Tip: Compress the pistons into the caliper bores. |
| 5 | Rear Disc Brake Outer Pad Assembly |
