Rear Seat Back Cushion Trim Panel Replacement

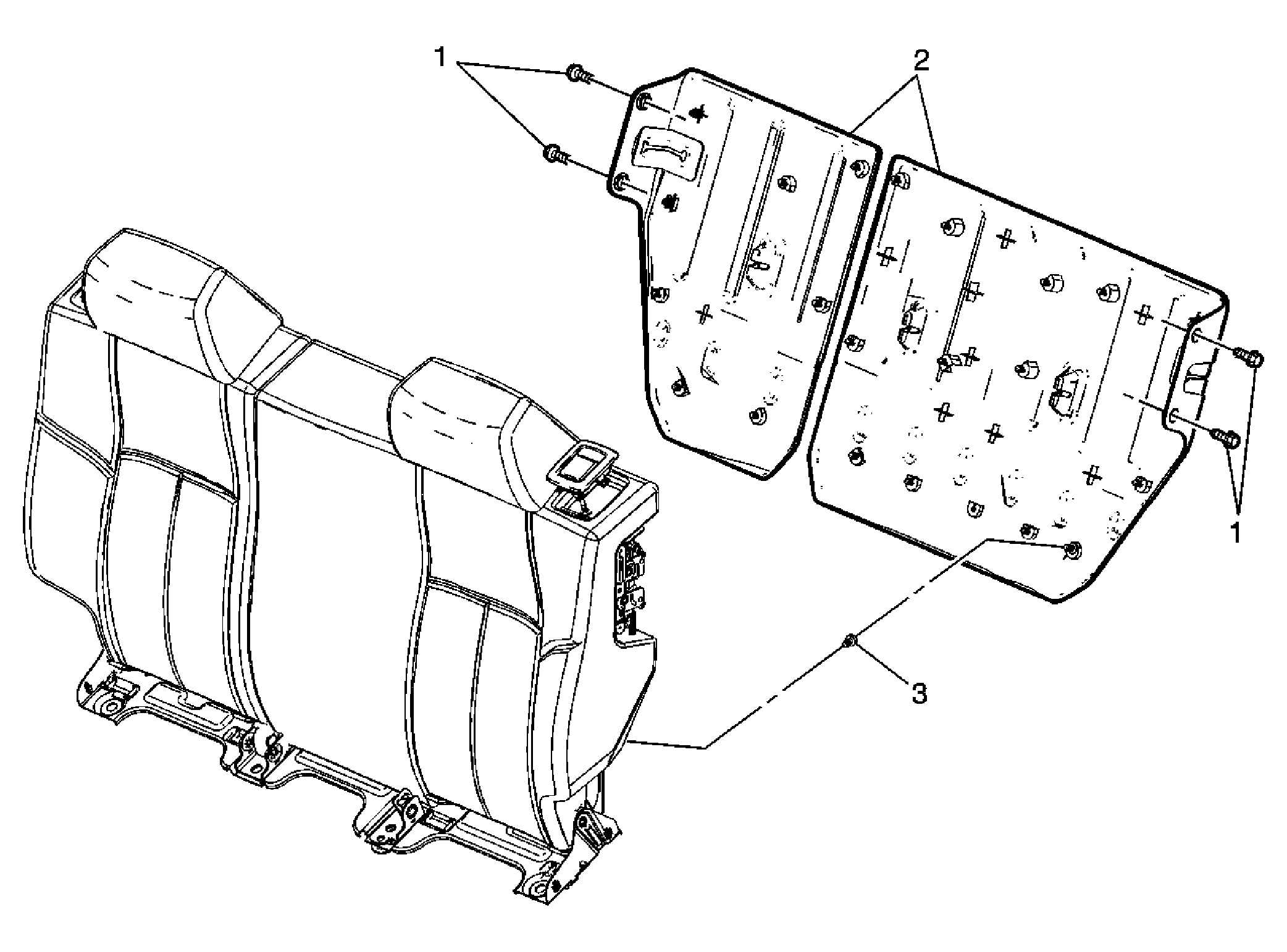

Fig 1: Trim Panel Replacement - Rear Seat Back

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Back Cushion Panel Screw NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Rear Seat Back Cushion Panel Procedure Recline the seat forward. Use a door pad trim tool or equivalent to help disengage the retainers of the seat back panel from the seat back frame. Replace any damaged retainers.
3	Rear Seat Back Cushion Panel Retainer (Qty: 23)

Callout

Component Name

Rear Seat Back Cushion Panel Screw

NOTE: Refer to Fastener Notice .

Tighten: 3 N.m (27 lb in)

Rear Seat Back Cushion Panel

Procedure

Recline the seat forward.
Use a door pad trim tool or equivalent to help disengage the retainers of the seat back panel from the seat back frame.
Replace any damaged retainers.

Rear Seat Back Cushion Panel Retainer (Qty: 23)
