Front Seat Trim Panel Replacement (Power Lumbar)

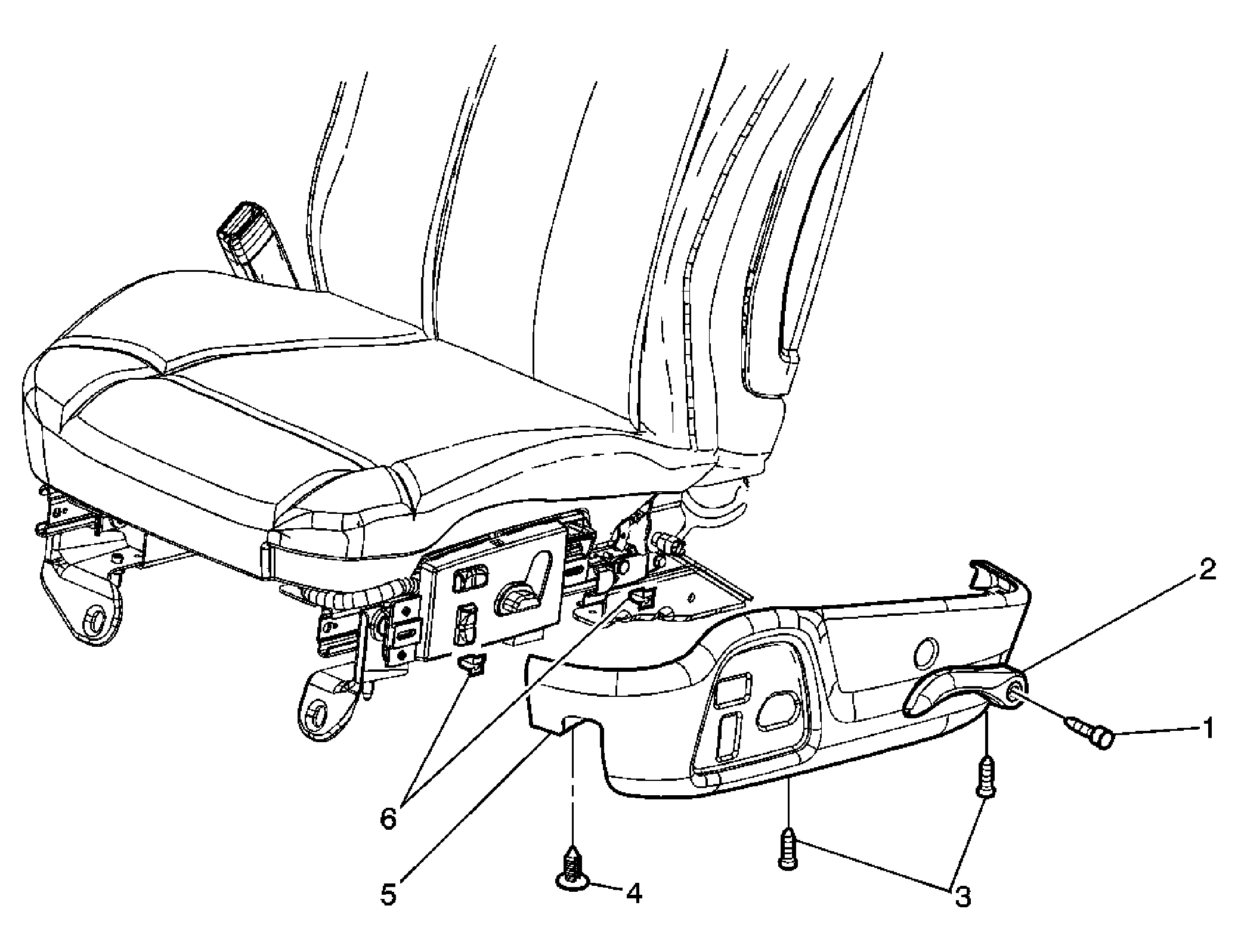

Fig 1: Trim Panel Replacement - Front Seat (Power Lumbar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bucket seat. Refer to Front Seat Replacement - Bucket .
1	Seat Recliner Handle Screw NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Seat Recliner Handle
3	Seat Adjuster Front Finish Cover Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
4	Front Seat Trim Panel Push-in Retainer
5	Front Seat Trim Panel
6	Front Seat Trim Panel Retainer Clip (Qty: 2)
