Radio Speaker Amplifier Replacement

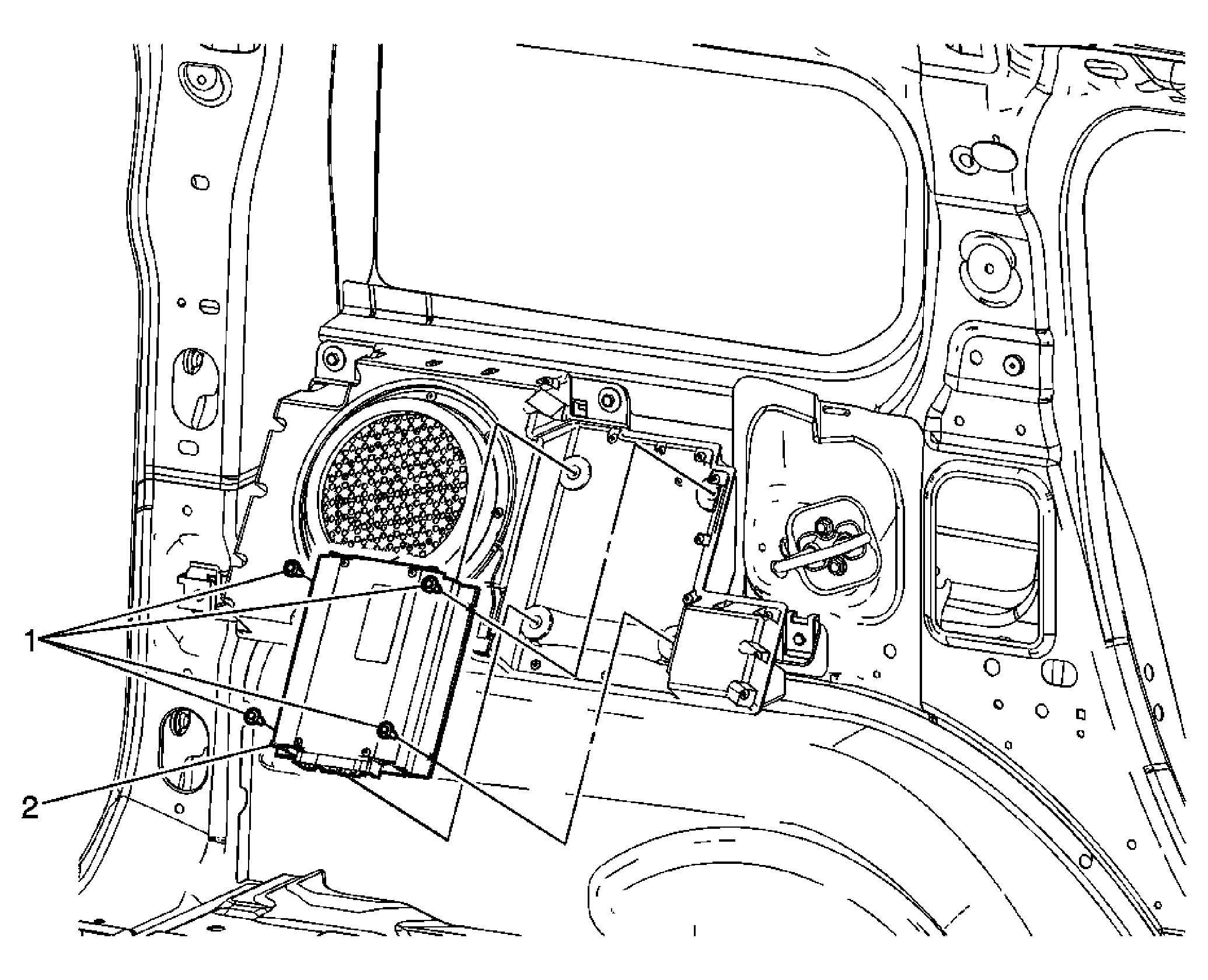

Fig 1: Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the left body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side . Program the audio amplifier after replacement. Refer to Control Module References .
1	Amplifier Screw (Qty: 4) Tip: A stud and nut service kit is available from SPO to mount the audio amplifier. Tighten: 2 N.m (18 lb in)
2	Radio Speaker Amplifier Tip: Disconnect the electrical connectors.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the left body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side .
Program the audio amplifier after replacement. Refer to Control Module References .

Amplifier Screw (Qty: 4)
Tip: A stud and nut service kit is available from SPO to mount the audio amplifier.

Tighten: 2 N.m (18 lb in)

Radio Speaker Amplifier
Tip: Disconnect the electrical connectors.
