Transfer Case Shift Control Switch Replacement

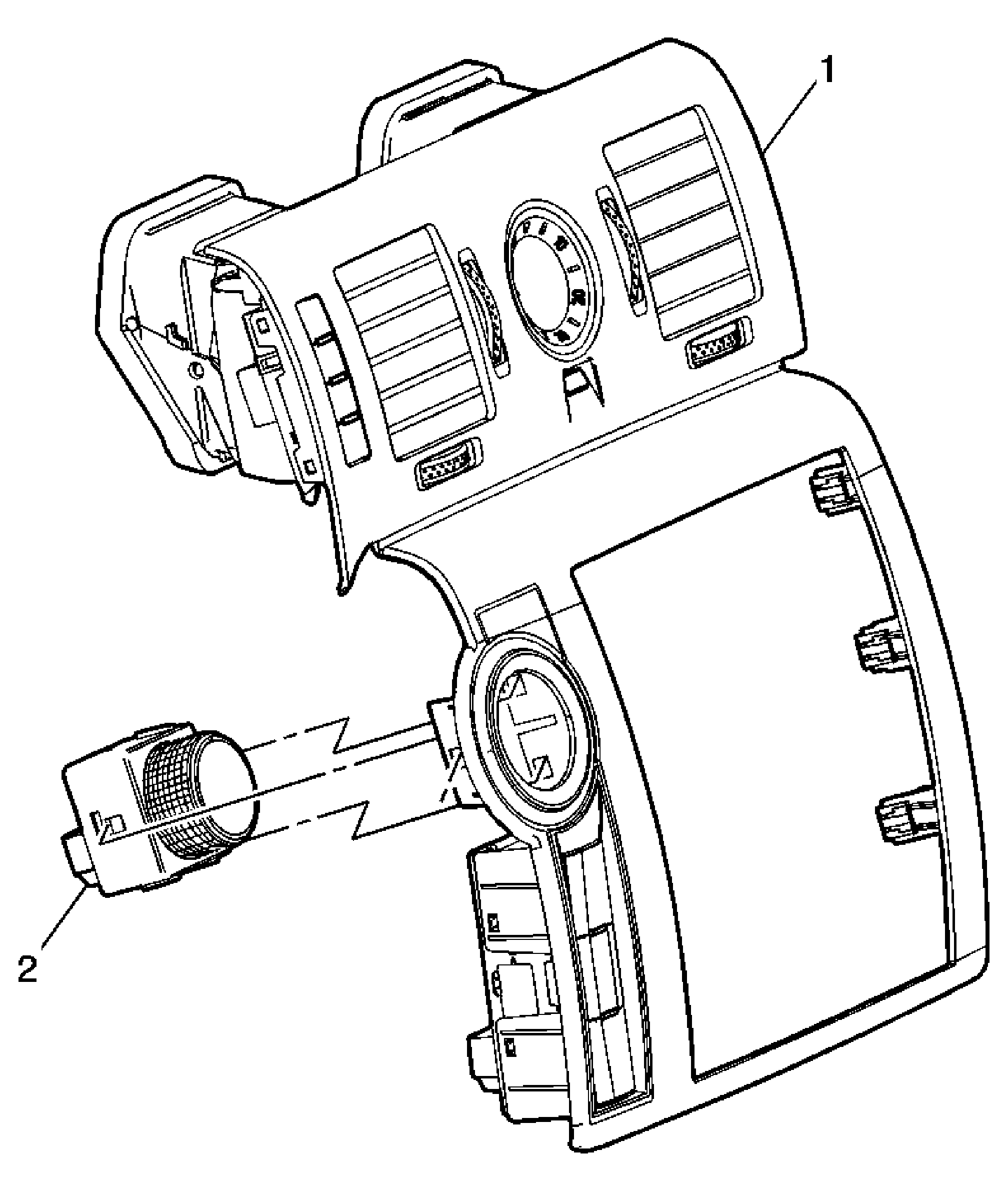

Fig 1: Transfer Case Shift Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Center Air Outlet Bezel Assembly Refer to Instrument Panel Center Air Outlet Bezel Replacement .
2	Transfer Case Selector Switch Assembly Procedure:  Unsnap the switch assembly from the center air outlet bezel.
