Radio Speaker Amplifier Replacement (UQS)

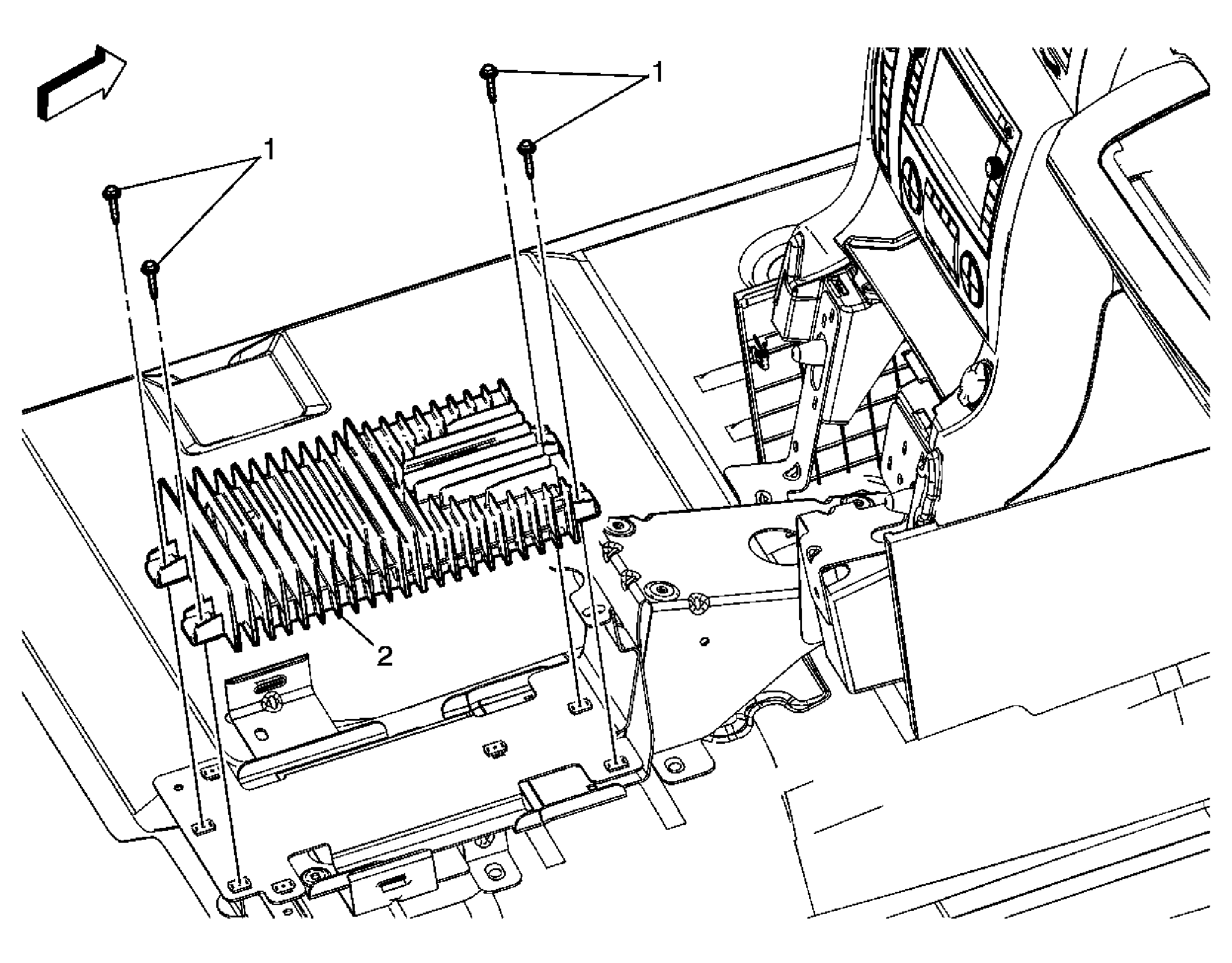

Fig 1: Radio Speaker Amplifier (UQS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console. Refer to Front Floor Console Replacement .
1	Radio Speaker Amplifier Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Radio Speaker Amplifier Assembly Procedure Disconnect the electrical connectors. If installing a replacement amplifier, program the amplifier. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the front floor console. Refer to Front Floor Console Replacement .

Radio Speaker Amplifier Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Radio Speaker Amplifier Assembly

Procedure

Disconnect the electrical connectors.
If installing a replacement amplifier, program the amplifier. Refer to Control Module References .
