Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement

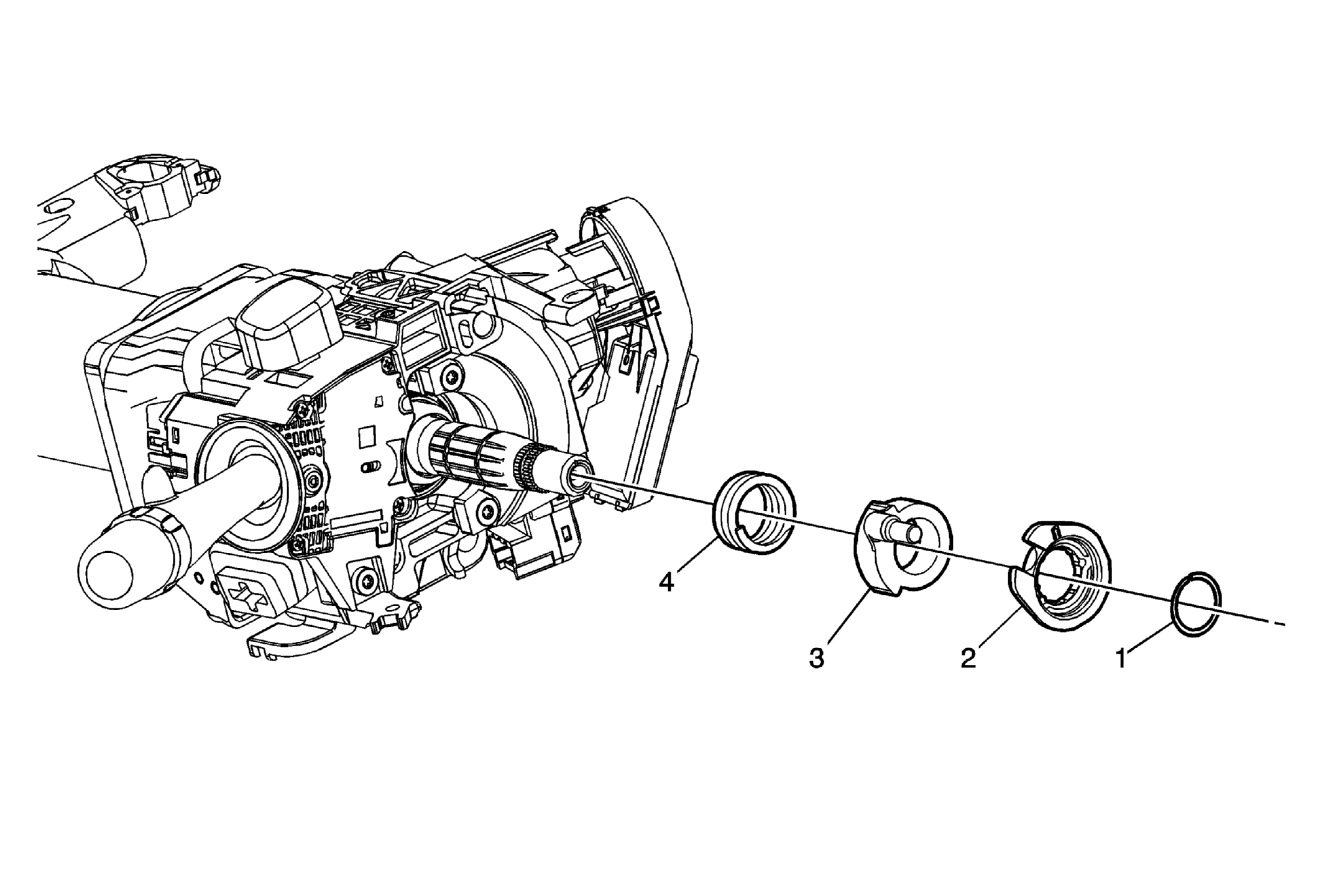

Fig 1: Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil Replacement .
1	Steering Shaft Lock Plate Retaining Ring Procedure: Use compressor J 23653-SIR and adapter J 42137 to remove the steering shaft lock plate retaining ring. See Special Tools . Tip: Do not reuse the steering shaft lock plate retaining ring. Replace it. Special Tools J 23653-SIR Steering Column Lock Plate Compressor. See Special Tools . J 42137 Cam Orientation Plate Adapter. See Special Tools .
2	Steering Shaft Lock Plate Tip: The steering shaft lock plate can only be installed one way, align the it to the solitary larger spline on the steering shaft.
3	Turn Signal Cancel Cam Tip: Ensure the turn signal cancel cam is aligned to the turn signal multifunction switch when reinstalling.
4	Steering Shaft Upper Bearing Spring
