Inflatable Restraint Steering Wheel Module Coil Replacement

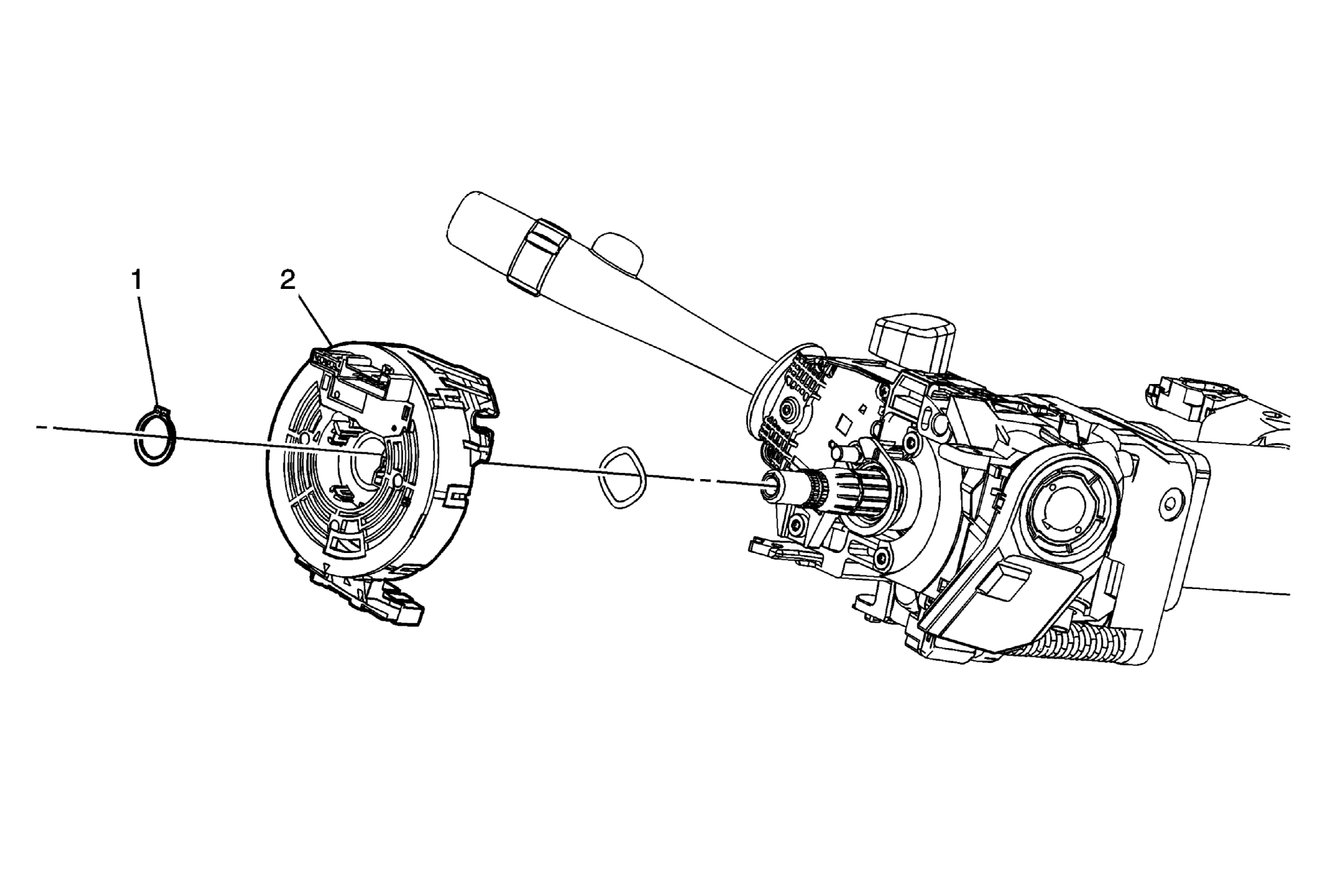

Fig 1: Inflatable Restraint Steering Wheel Module Coil

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: The new SIR coil assembly will be centered. Improper alignment of the SIR coil assembly may damage the unit, causing an inflatable restraint malfunction. Preliminary Procedure: Remove the steering column shroud. Refer to Steering Column Shroud Replacement .
1	Inflatable Restraint Steering Wheel Module Coil Retaining Ring
2	Inflatable Restraint Steering Wheel Module Coil Procedure:  Disconnect any electrical connectors as needed. Tip:  Ensure the inflatable restraint steering wheel module coil washer does not need replacing and is installed correctly before reinstalling the coil. If reusing the inflatable restraint steering wheel module coil it must centered before reinstalling it. Refer to Inflatable Restraint Steering Wheel Module Coil Centering .
