Inflatable Restraint Vehicle Rollover Sensor Replacement

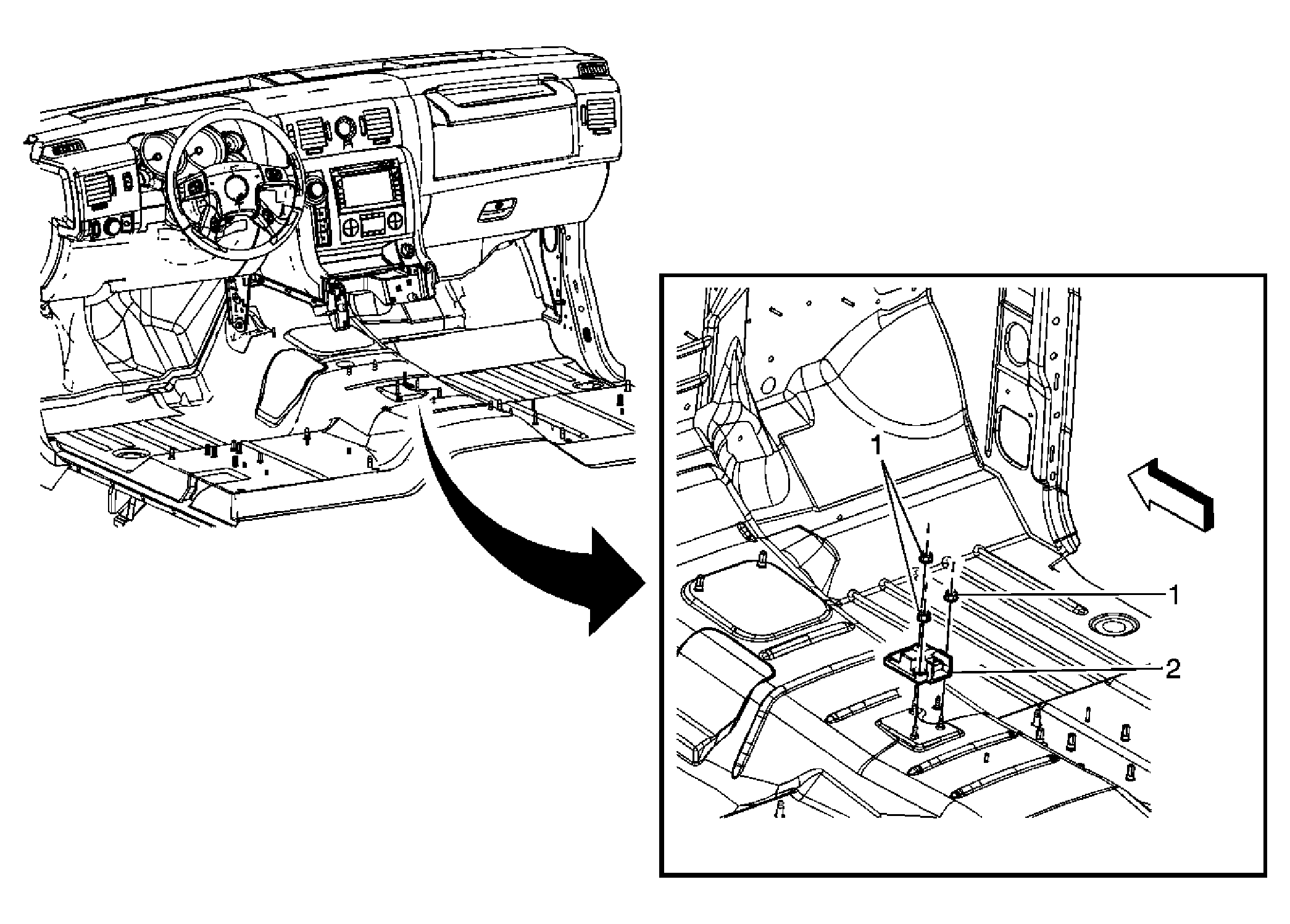

Fig 1: Inflatable Restraint Vehicle Rollover Sensor
GM1943745Courtesy of GENERAL MOTORS CORP.
Callout Component Name
CAUTION: Refer to SIR Caution .

Preliminary Procedure

  1. Disable the SIR. Refer to SIR Disabling and Enabling .
  2. Remove the Transmission Control Bracket. Refer to Transmission Control Bracket Replacement .
1 Inflatable Restraint Roll Over Sensor Nuts (Qty: 3)
NOTE: Refer to Fastener Notice .

Tighten:  10 N.m (88 lb in)
2 Inflatable Restraint Roll Over Sensor

Procedure

  1. Disconnect electrical connectors.
  2. Enable the SIR. Refer to SIR Disabling and Enabling .
