Auxiliary Blower Motor Replacement

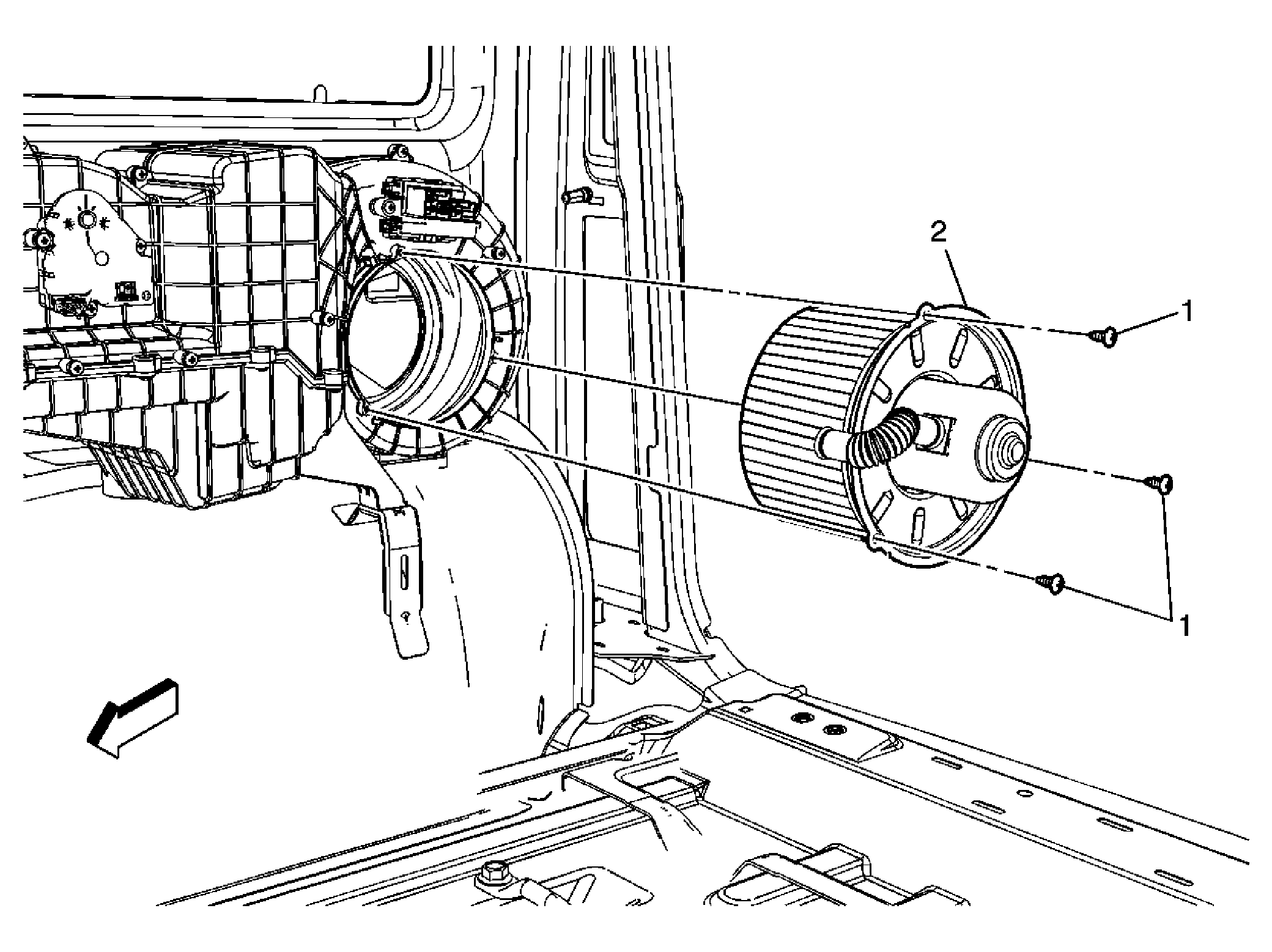

Fig 1: Auxiliary Blower Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side . Disconnect any wiring connectors. Disconnect the auxiliary blower motor cooling tube.
1	Auxiliary Blower Motor Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Auxiliary Blower Motor

Callout

Component Name

Preliminary Procedure

Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side .
Disconnect any wiring connectors.
Disconnect the auxiliary blower motor cooling tube.

Auxiliary Blower Motor Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Auxiliary Blower Motor
