Auxiliary Air Distributor Lower Duct Replacement

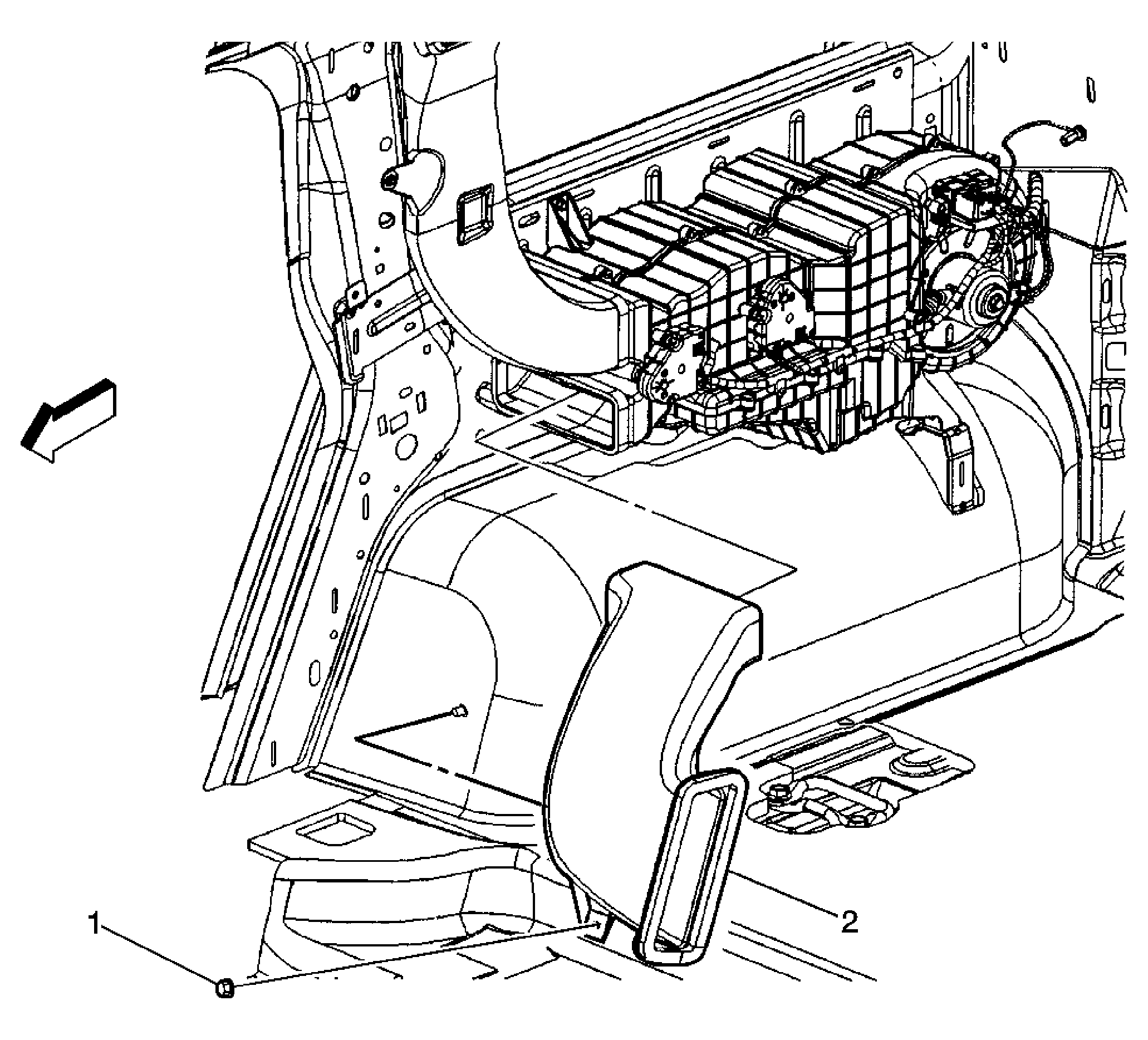

Fig 1: Auxiliary Air Distributor Lower Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side . Disconnect any wiring connectors.
1	Auxiliary Air Distributor Duct - Lower Nut NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Auxiliary Air Distributor Duct - Lower

Callout

Component Name

Preliminary Procedure

Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side .
Disconnect any wiring connectors.

Auxiliary Air Distributor Duct - Lower Nut

NOTE: Refer to Fastener Notice .

Tighten: 3 N.m (27 lb in)

Auxiliary Air Distributor Duct - Lower
