Auxiliary Air Distributor Duct Replacement - Upper

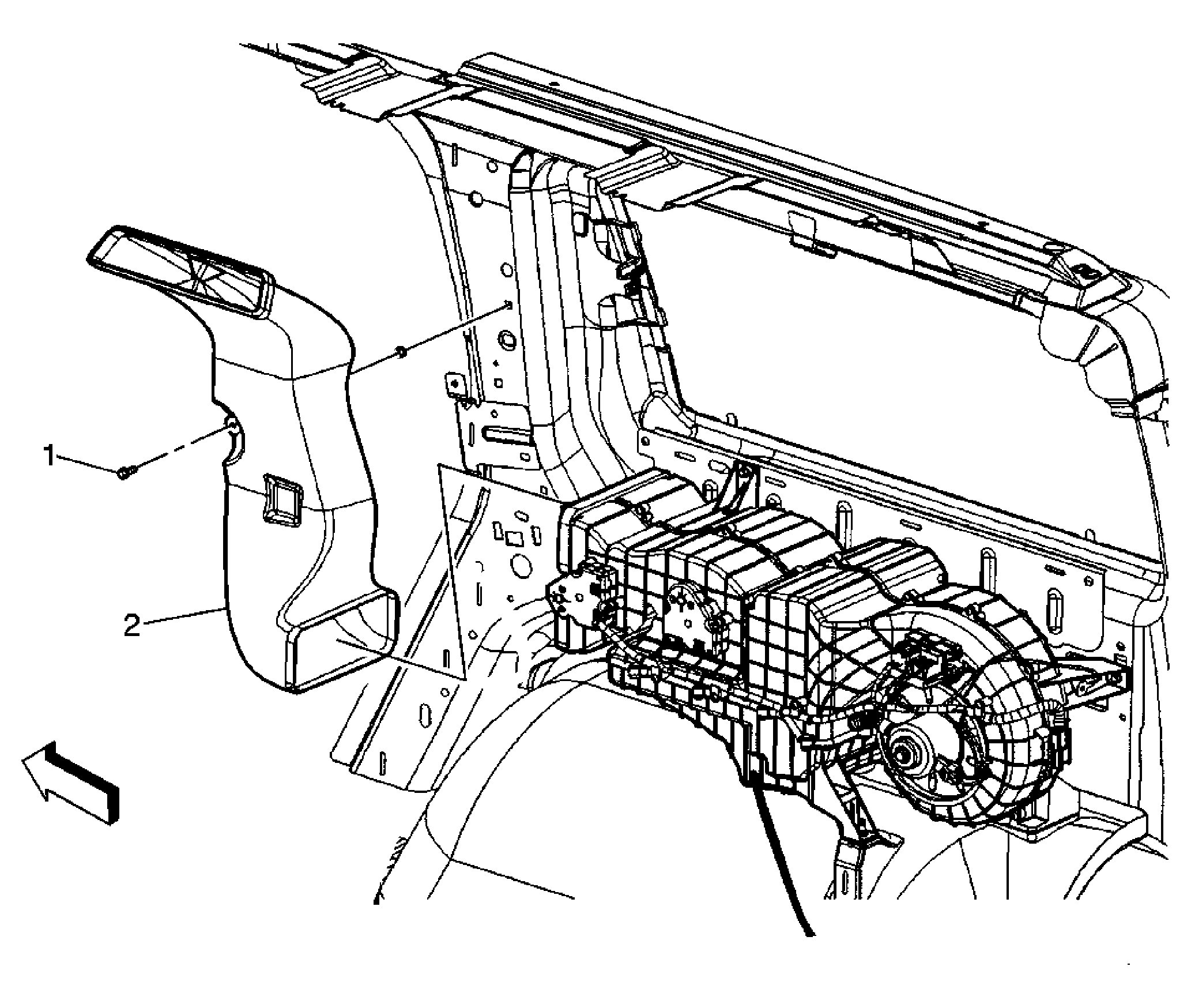

Fig 1: Auxiliary Air Distributor Duct - Upper

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side . Disconnect any wiring connectors.
1	Auxiliary Air Distributor Duct - Upper Bolt NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Auxiliary Air Distributor Duct - Upper Procedure: Squeeze upper duct at headliner to remove.

Callout

Component Name

Preliminary Procedure

Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side .
Disconnect any wiring connectors.

Auxiliary Air Distributor Duct - Upper Bolt

NOTE: Refer to Fastener Notice .

Tighten: 3 N.m (27 lb in)

Auxiliary Air Distributor Duct - Upper
Procedure:
Squeeze upper duct at headliner to remove.
