Auxiliary Air Conditioning Evaporator and Blower Lower Case Replacement

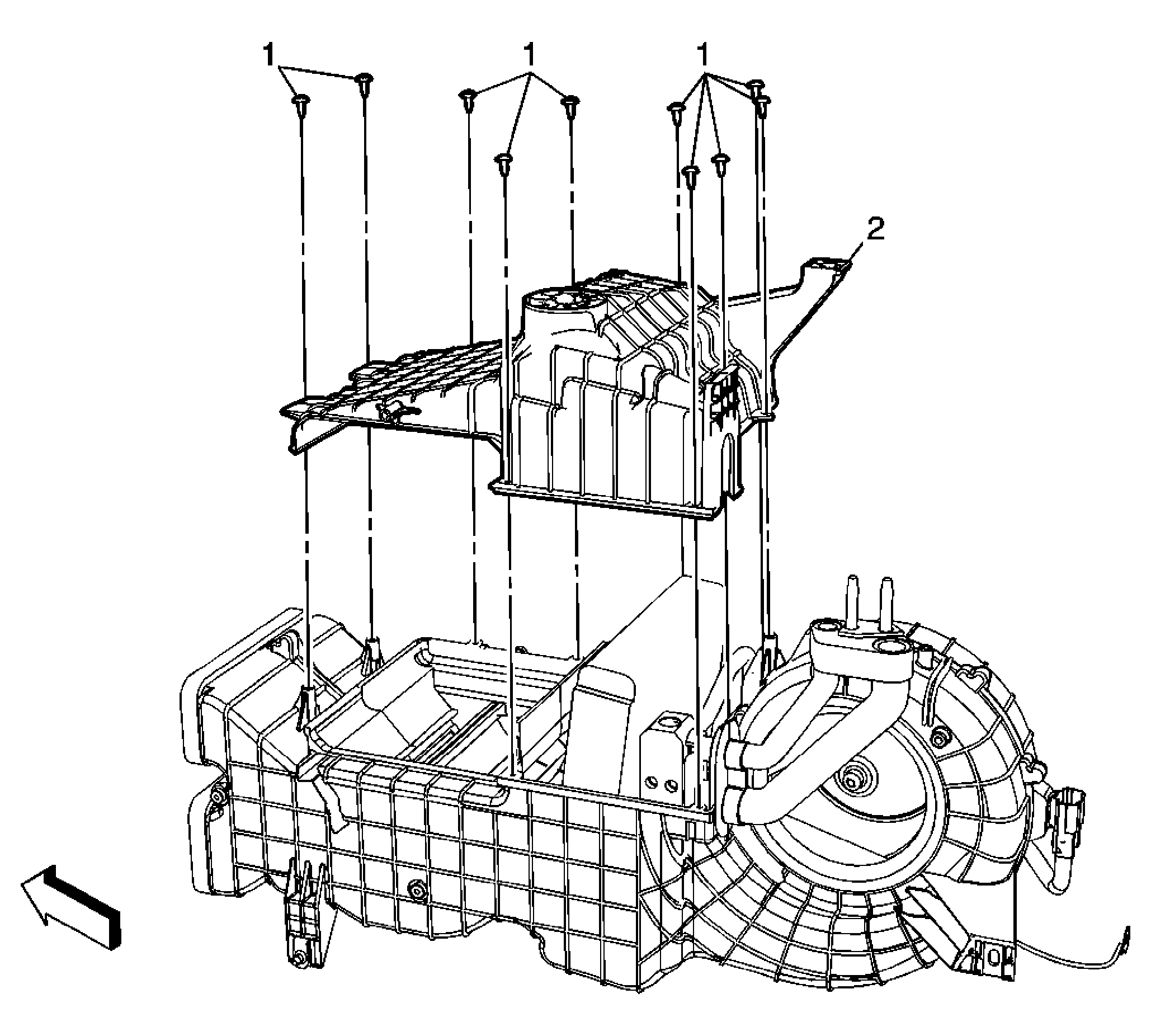

Fig 1: Auxiliary Air Conditioning Evaporator and Blower Lower Case
GM1966532Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the auxiliary heater core. Refer to Auxiliary Heater Core Replacement .
  2. Disconnect any wiring connectors.
  3. Invert the auxiliary HVAC module to access components.
1 Auxiliary A/C Evaporator and Blower Lower Case Screw (Qty: 10)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Auxiliary A/C Evaporator and Blower Lower Case
