Mode Valve Actuator Replacement - Auxiliary

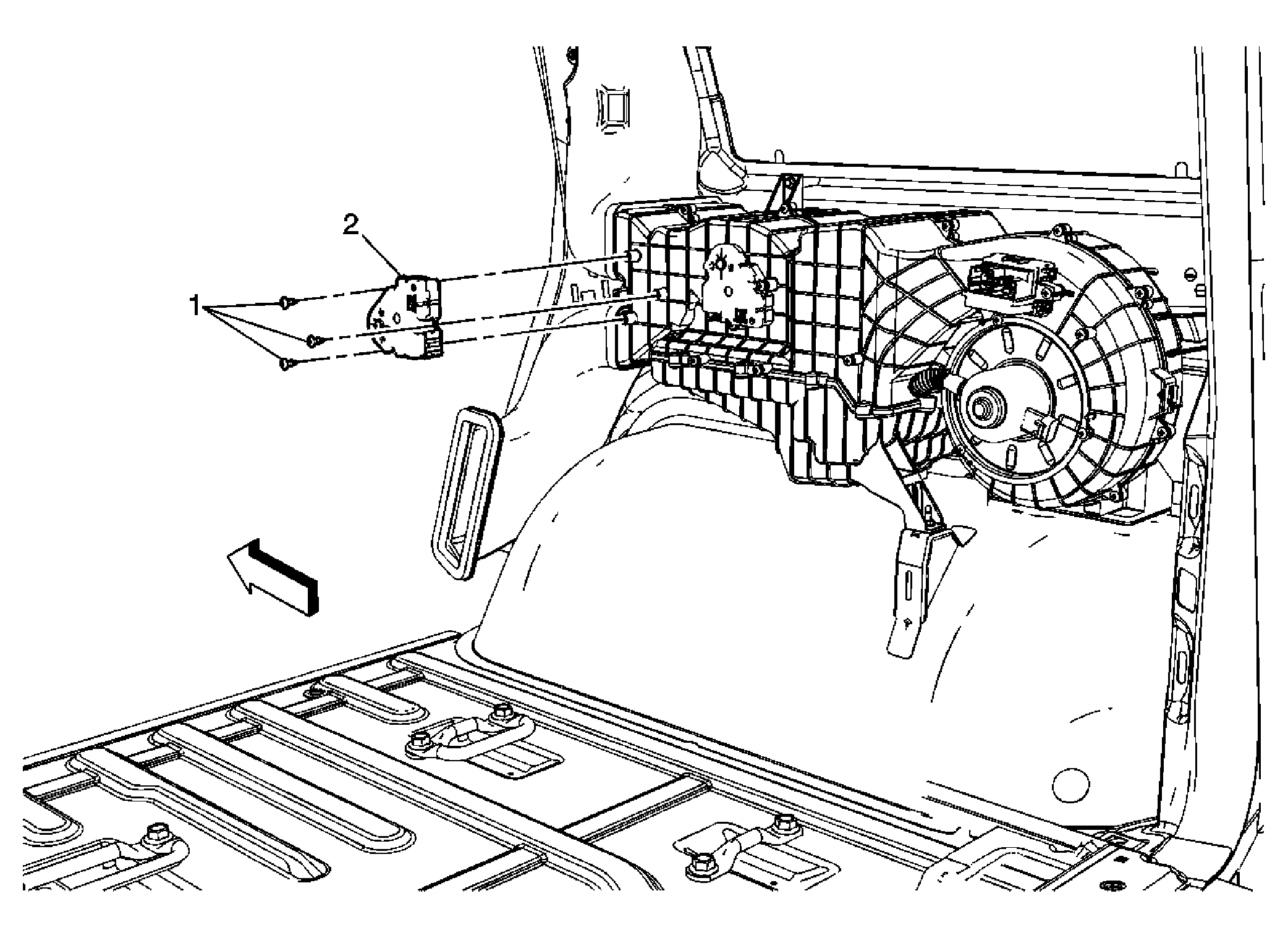

Fig 1: Mode Valve Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side . Disconnect any wiring connectors.
1	Auxiliary Mode Actuator Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Auxiliary Mode Actuator Procedure: Re-calibrate the mode actuator. Refer to Actuator Recalibration .

Callout

Component Name

Preliminary Procedure

Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side .
Disconnect any wiring connectors.

Auxiliary Mode Actuator Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Auxiliary Mode Actuator
Procedure:
Re-calibrate the mode actuator. Refer to Actuator Recalibration .
