Air Temperature Sensor Replacement - Upper Right Side

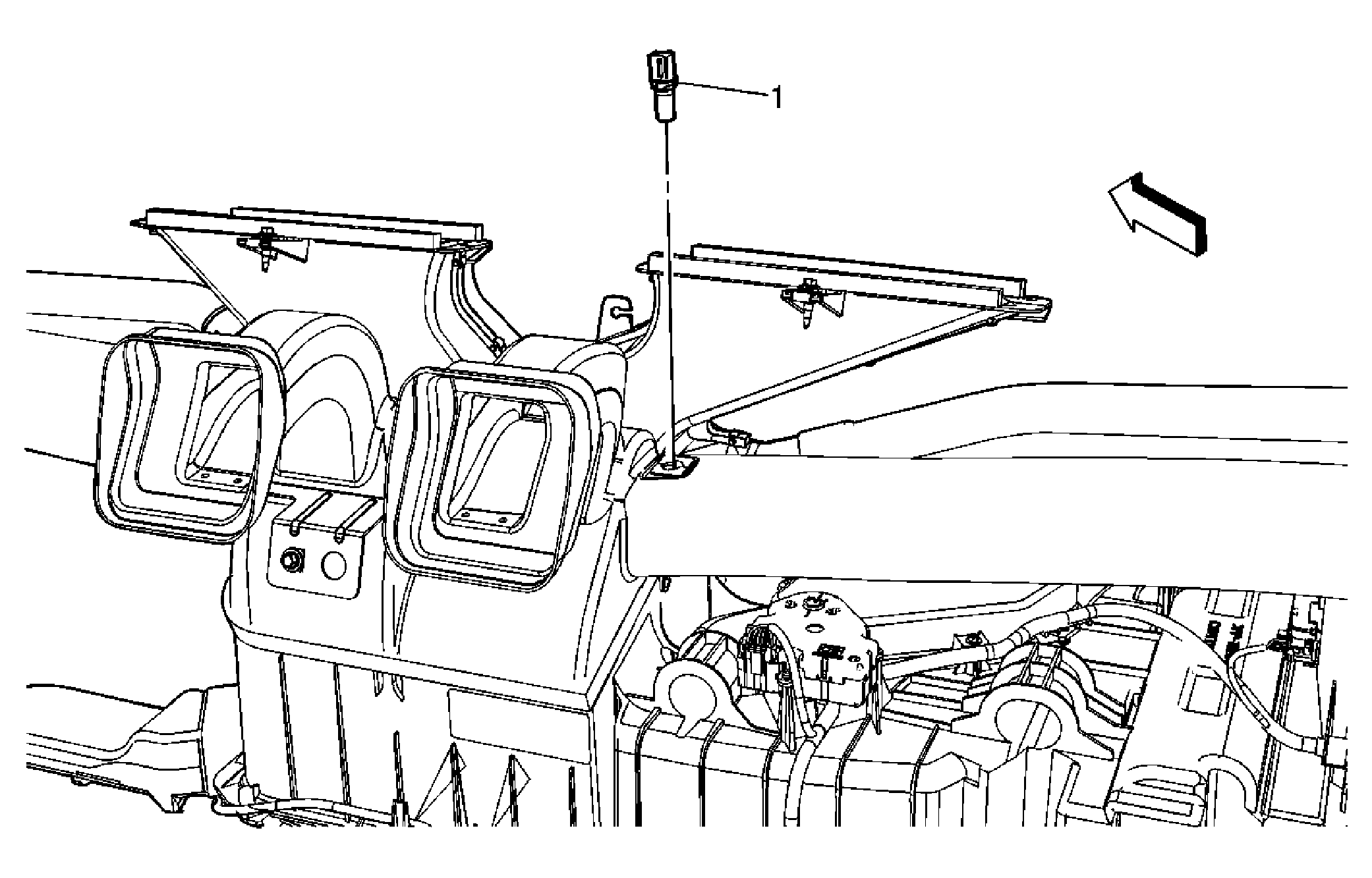

Fig 1: Air Temperature Sensor
GM1971749Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove I/P carrier assembly. Refer to Instrument Panel Carrier Replacement .
1 Air Temperature Sensor - Upper Right Side
Procedure:
Rotate sensor 1/4 turn counter clockwise to remove.
