Air Temperature Sensor Replacement - Lower Right Side

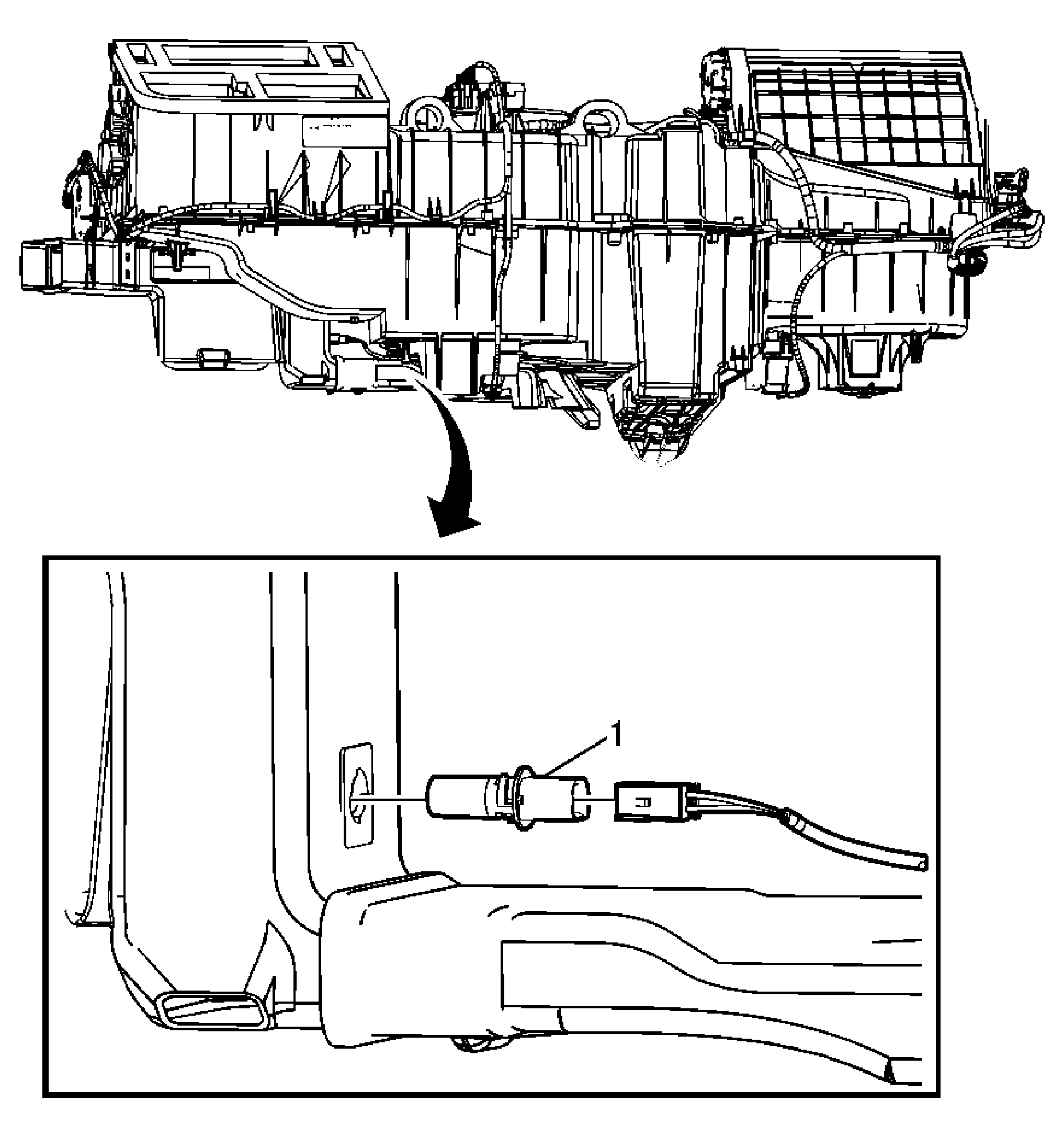

Fig 1: Air Temperature Sensor
GM1971923Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the I/P insulator panel. Refer to Instrument Panel Insulator Panel Replacement .
1 Air Temperature Sensor - Lower Right Side

Procedure

  1. Disconnect the electrical connector.
  2. Rotate sensor 1/4 turn to remove.
