Instrument Panel Insulator Panel Replacement

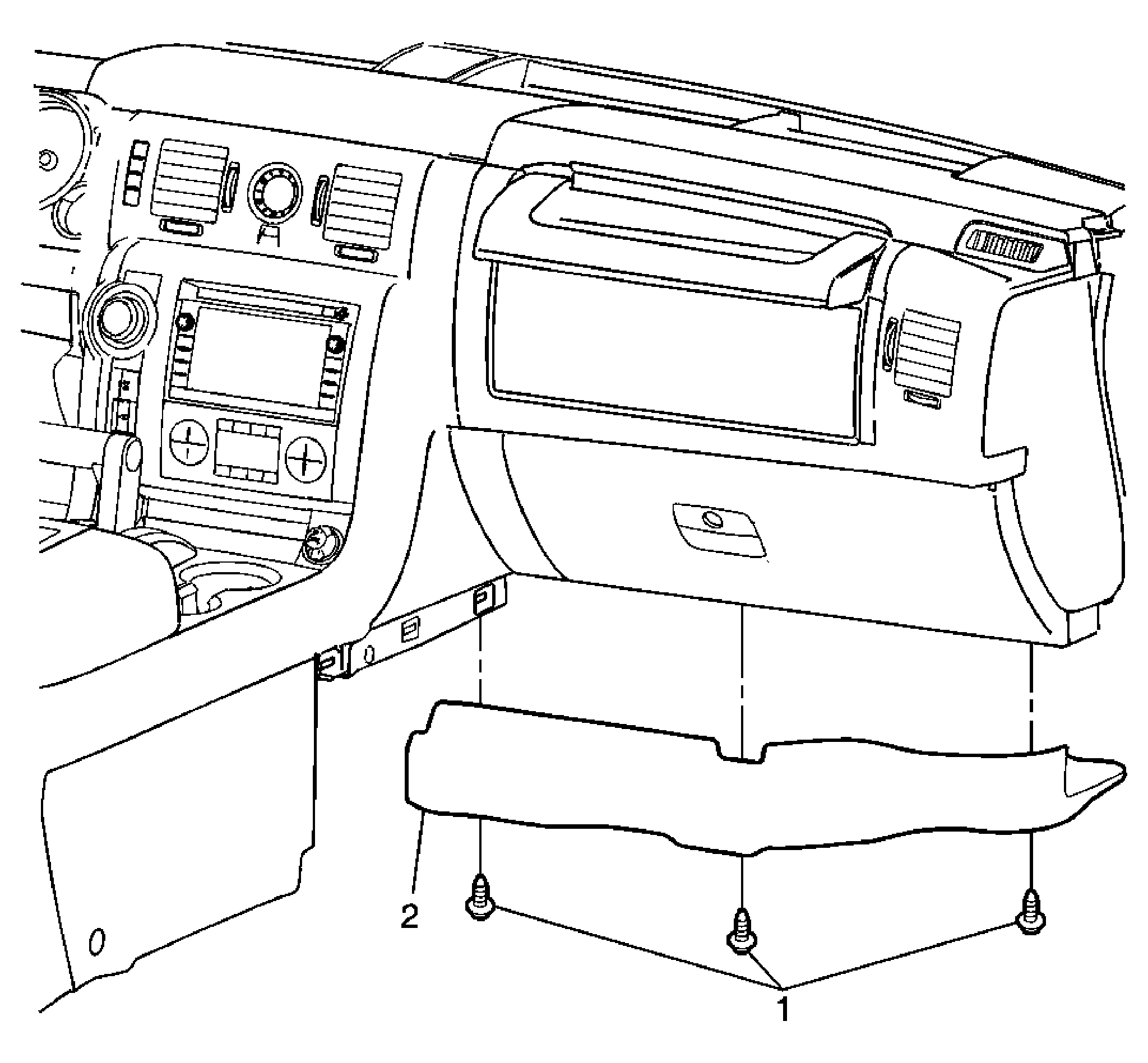

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the right instrument panel lower extension trim panel. Refer to Instrument Panel Lower Extension Trim Panel Replacement - Right Side . |
|
| 1 | Instrument Panel Insulator Panel Screw (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Insulator Panel Assembly |
