Air Temperature Sensor Replacement - Lower Left Side

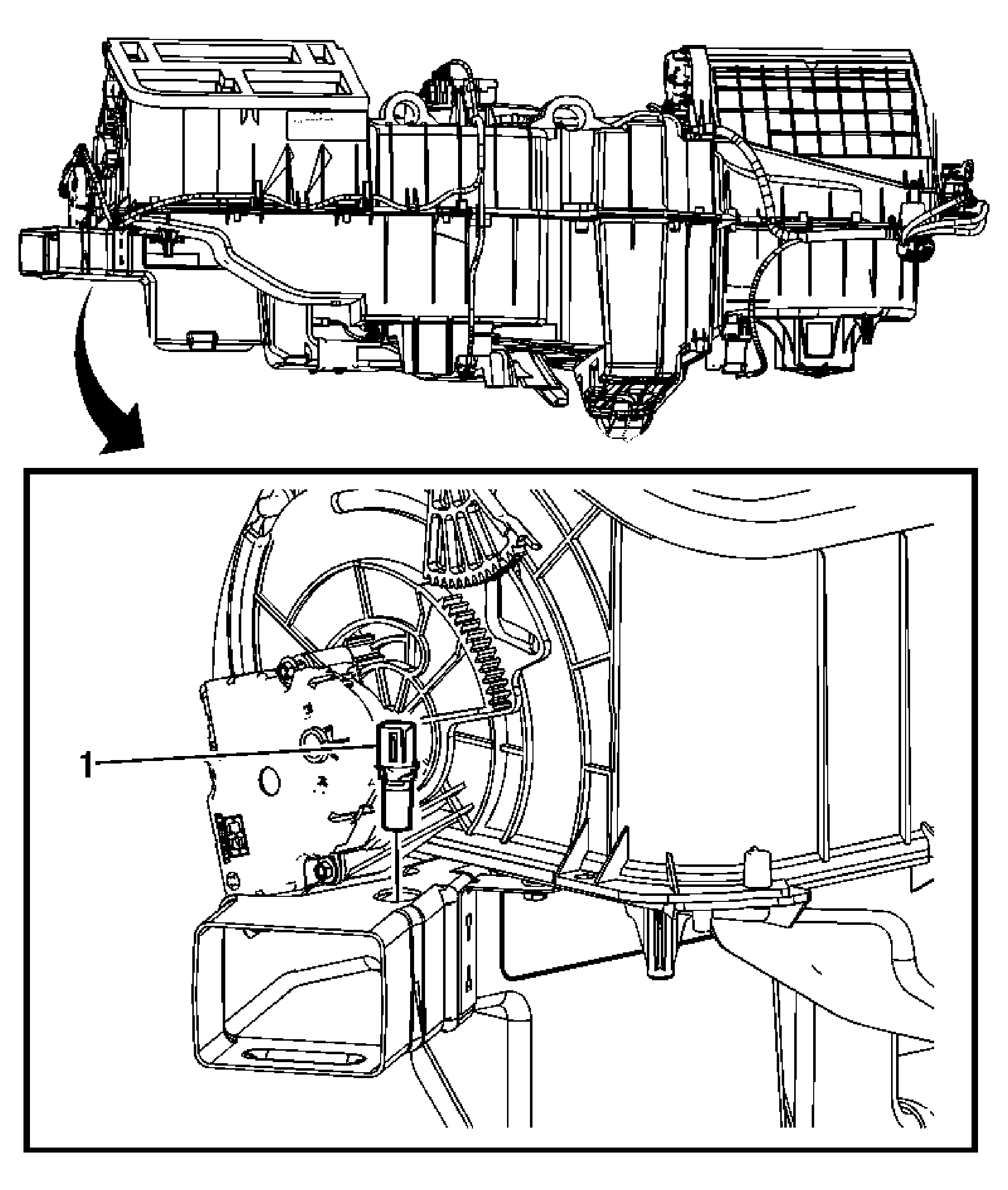

Fig 1: Air Temperature Sensor
GM1971926Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the knee bolster. Refer to Driver Knee Bolster Replacement .
1 Air Temperature Sensor - Lower Left Side

Procedure

  1. Disconnect the electrical connector.
  2. Rotate sensor 1/4 turn to remove.
