Driver Knee Bolster Replacement

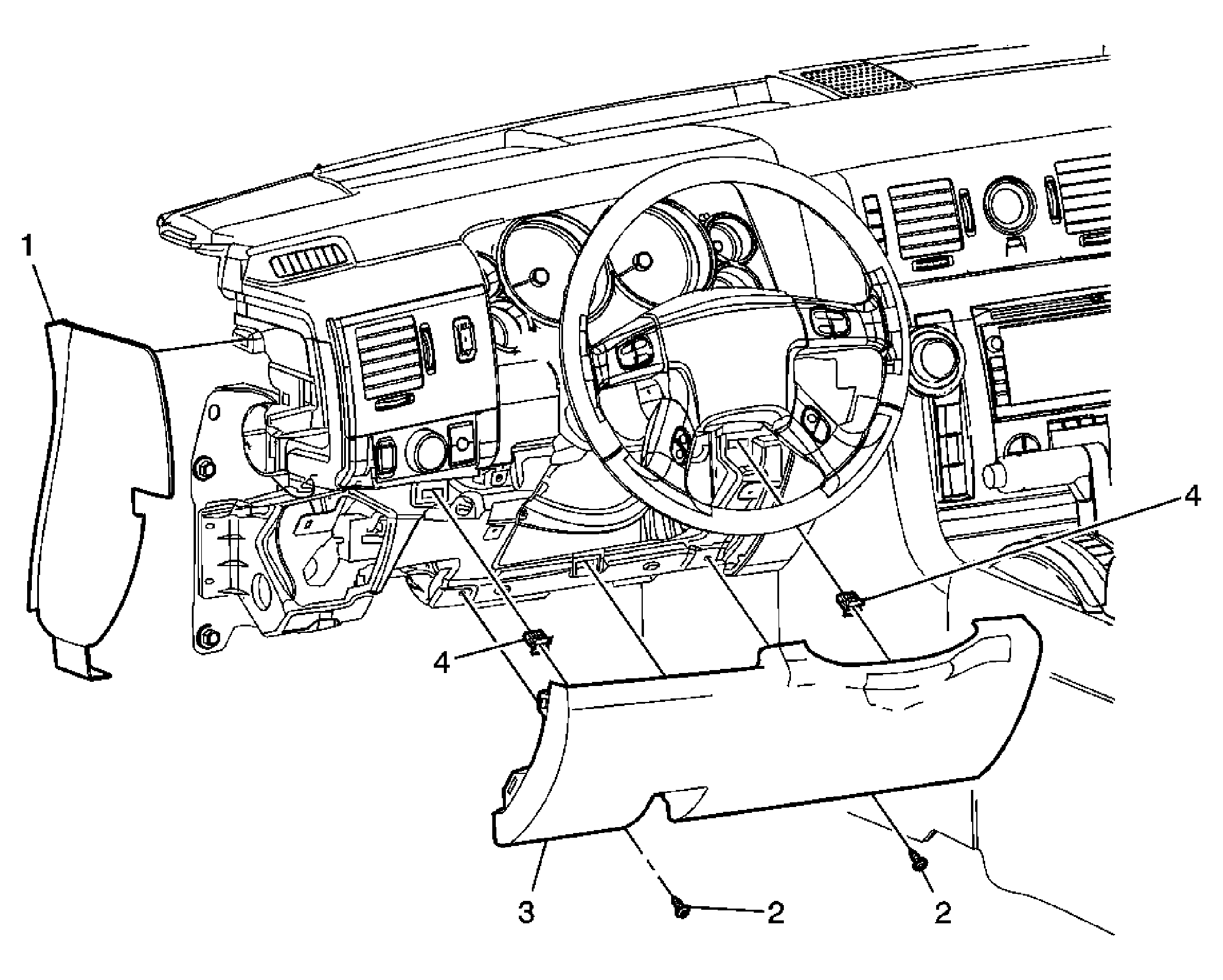

Fig 1: Driver Knee Bolster Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the parking brake release handle. Refer to Parking Brake Release Handle Assembly Replacement .
1	Instrument Panel Side Trim Panel Refer to Instrument Panel Side Trim Panel Replacement .
2	Instrument Panel Drivers Knee Bolster Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
3	Instrument Panel Drivers Knee Bolster Assembly
4	Retainer Clip (Qty: 4)
